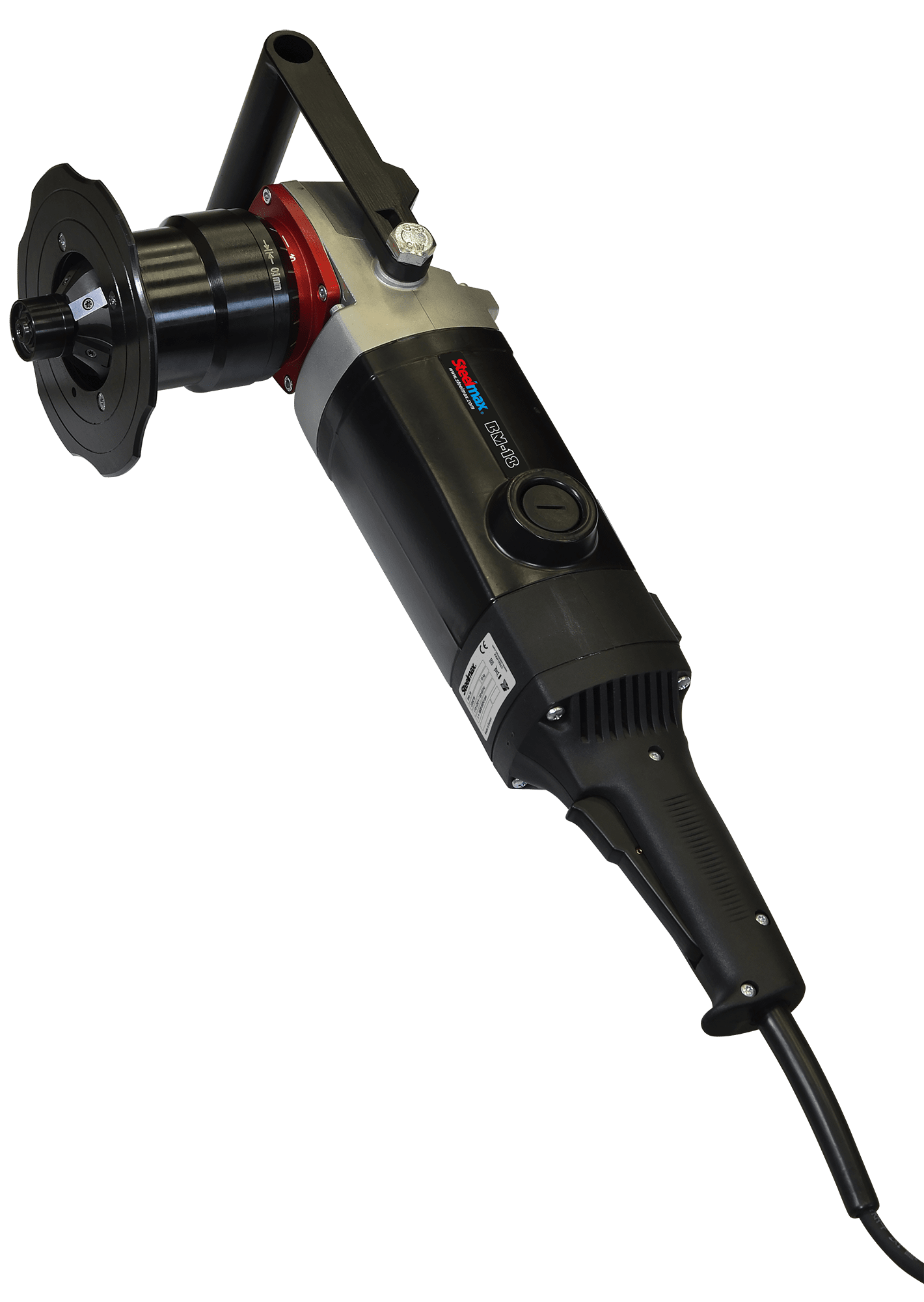

BM18 Portable Beveling Machine

PRICE

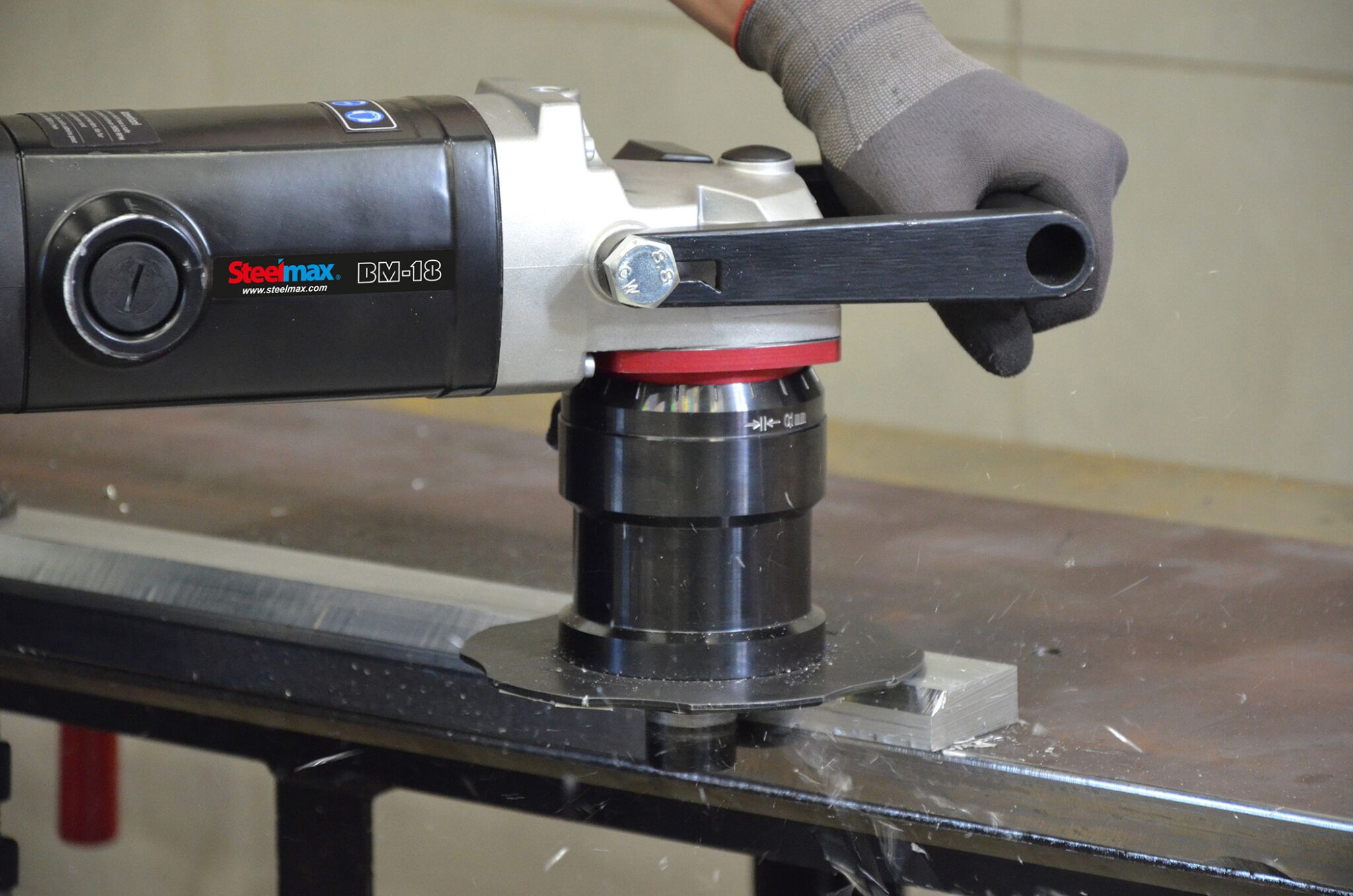

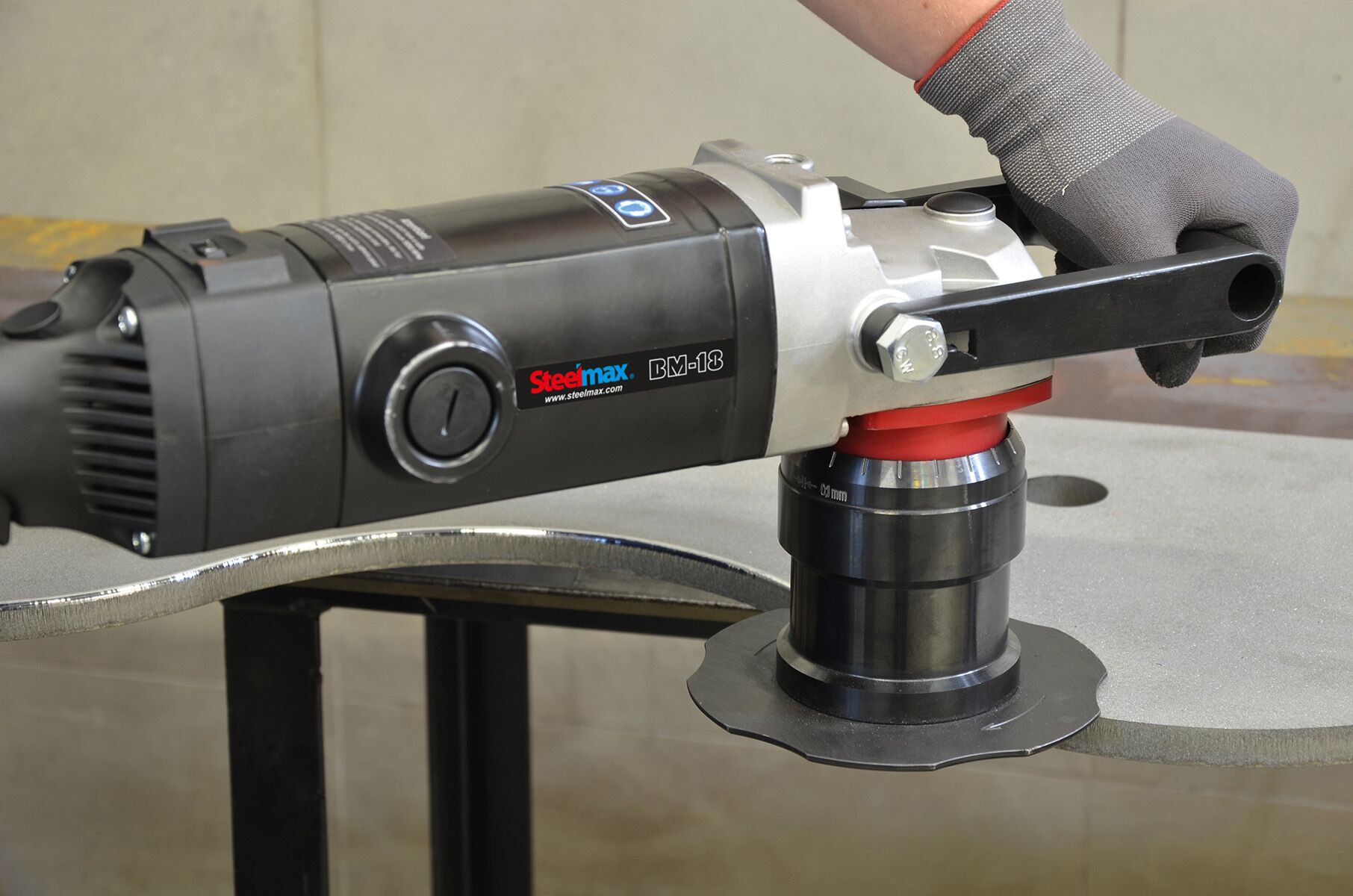

The Steelmax BM18 is a light weight portable beveling machine for use on flat, curved or rolled plate. It can also perform OD and ID bevels on pipe, including deburring, and can chamfer and countersink holes with a minimum diameter of 1-9/16″ (40 mm). Interchangeable bevel milling heads, utilizing indexable carbide inserts, are available for bevel angles of 22.5°, 30°, 37.5°, 45° and 60°.  A radius milling head is also available with indexable carbide inserts to radius plate edges with a perfect 2, 3, 4 and 5 mm radius.

The BM18 is equipped with a simple bevel depth adjustment, overload protection and electronic speed control for use on a variety of materials, including steel and aluminum. The BM18 beveler is highly efficient for edge weld preparation and for producing radiused plate edges for optimal paint and coating adhesion. The compact design makes the BM18 an excellent tool for many fabrication applications

FEATURES

  • Highly-efficient beveling machine – up to 10 times faster than grinding
  • Produces no hazardous dust, greatly improving working environment
  • Guide plate and roller guides insure consistent, highly accurate bevel angles
  • Lightweight ergonomic design reduces worker fatigue
  • Variable speed control permits adjustment of milling head for use on various grades of steel and aluminum
  • Versatile tool which can be used to bevel or radius mill straight edges, contours and holes
  • Ideal solution for radius milling for paint and coating preparation
  • Optional anti-abrasion plate and special inserts available for aluminum milling
SKU: SM-BM18; SM-BM18-230-1 Categories: , ,

Description

  • Highly-efficient beveling machine – up to 10 times faster than grinding
  • Produces no hazardous dust, greatly improving working environment
  • Guide plate and roller guides insure consistent, highly accurate bevel angles
  • Lightweight ergonomic design reduces worker fatigue
BM18 Technical Specifications
Part NumberSM-BM18 (110-120V/50-60Hz)
SM-BM18-230 (220-240V/50-60Hz)
Power Supply110-120V/50-60Hz or 220-240V/50-60Hz
Motor2200W 3.0 HP
Motor speed (without load)1800 – 5850 rpm

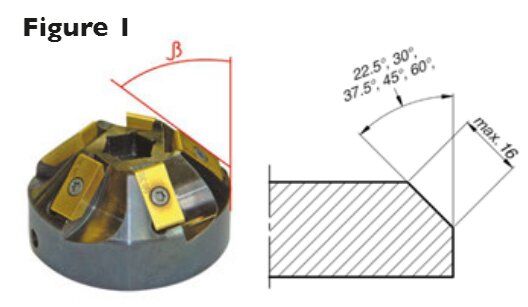

Maximum bevel widthb=11/16? (18 mm) see figure 1
Bevel angles depending on milling head22.5, 30, 37.5, 45, 60, degrees
Min. material thickness1/8? (1.5 mm)
Min. diameter of countersinkca 1-9/16? (40 mm)
Beveling with radiusR2, R3, R4, R5 see figure 2
Dimensions (L x W x H)23? x 6.1? x 9.4? (585 x 156 x 238 mm)
Weight (without milling head)22 lbs (10 kg)

Additional information

Weight22 lbs
Dimensions23 × 6 × 9.4 in
Accessories to be chosen by customer:
SM-GLW-000011Radius milling head
SM-PLY-000360Radius insert R2
SM-PLY-000159Radius insert R3
SM-PLY-000160Radius insert R4
SM-PLY-000161Radius insert R5
SM-UST-509-16-00-00-0Radius Edge Milling Depth Adjustment Tool
SM-GLW-000010Beveling milling head 22.5°
SM-GLW-000005Beveling milling head 30°
SM-GLW-000009Beveling milling head 37.5°
SM-GLW-000006Beveling milling head 45°
SM-GLW-000007Beveling milling head 60°
SM-PLY-000294Beveling insert for steel
SM-PLY-000195Beveling insert for aluminum
NKL-0509-05-00-00-0Anti-Abrasion Plate for Aluminum Milling

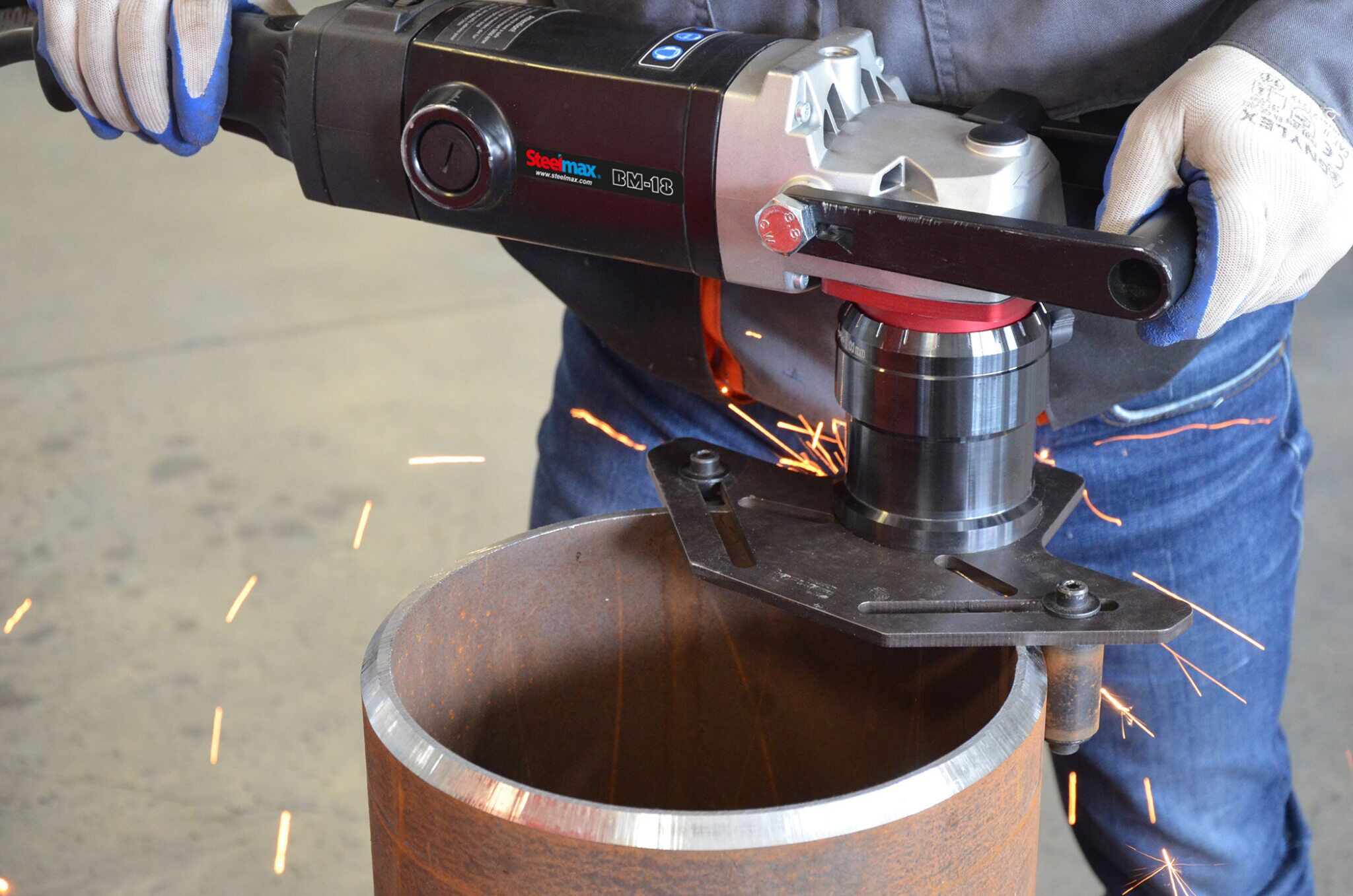

SM-PRW-0509-07-00-00-0Pipe Beveling Attachment

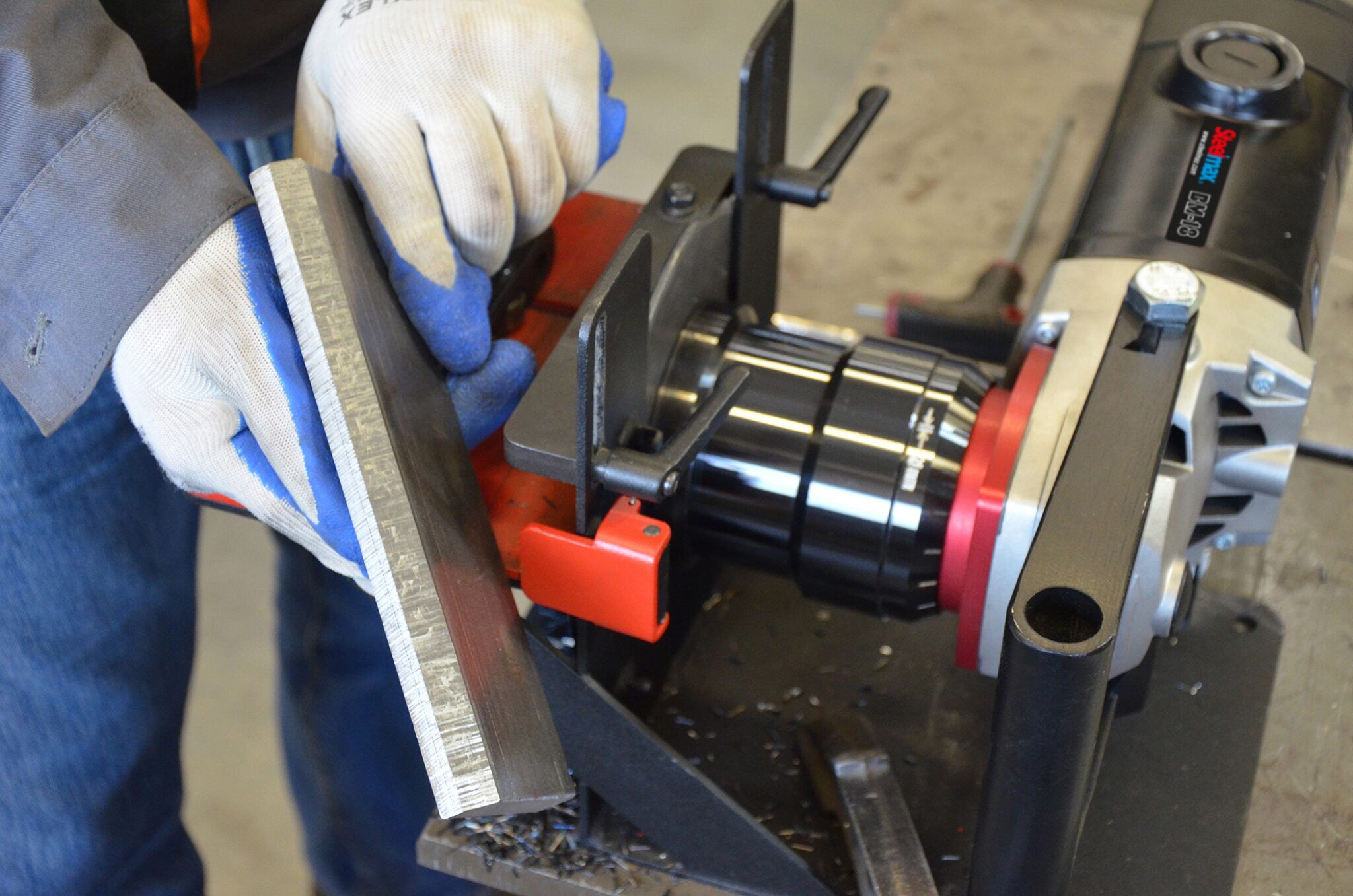

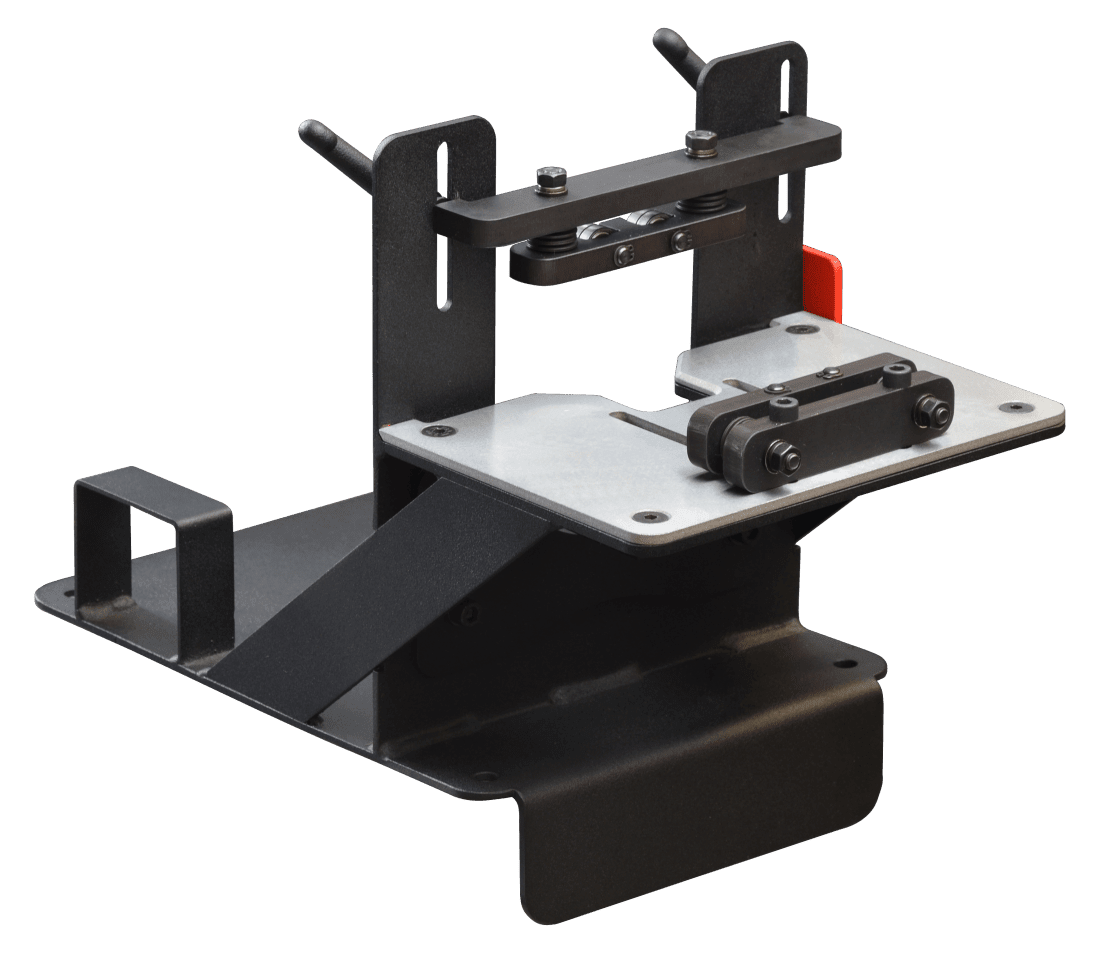

SM-ZBD-0509-12-00-00-0Small Workpiece Machining Table
SM-SRB-00289Mounting Screw for Radius Milling Head
SM-SRB-00290Mounting Screw for Beveling Milling Head
SM-RLK-0509-03-00-00-0Guide Roller


You may also like…

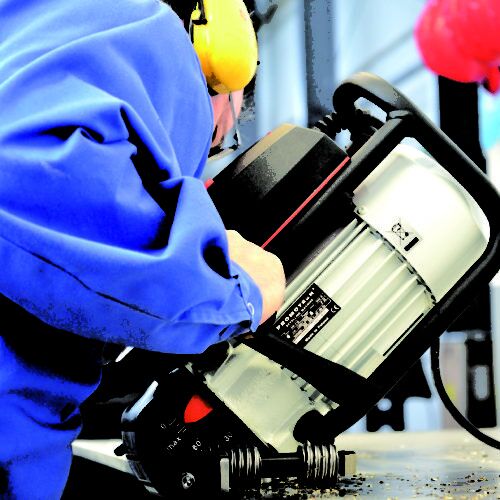

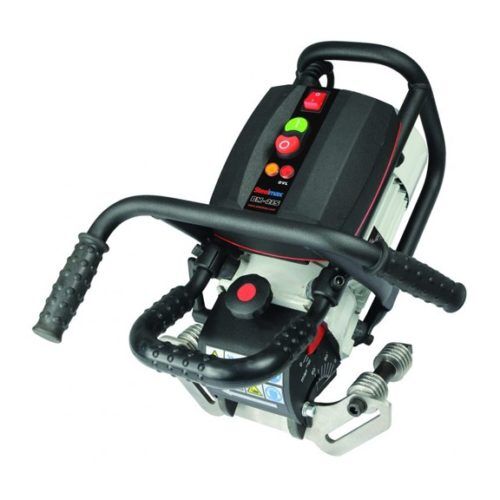

  • BM 21 SS Portable Beveler for Stainless Steel BM21 SS Portable Beveling Machine for Stainless Steel
