Pipe Bevelers

The Welding Shop of the 21st Century has at its disposal many new innovative technologies to improve productivity. Advancements in process control, automation, filler metals and shielding gases have come at a rapid pace. Implementation of these advancements can lead to significant costs savings, improvement in quality and reduction in rework for many shops. It is however very important to remember that even with these advancements, basic welding fundamentals are still key to having a successful operation.

Steelmax offers a complete line of plate and pipe beveling solutions to meet even the most demanding steel fabrication requirements. From manual, hand-held machines to large automatic machines, Steelmax has you covered!

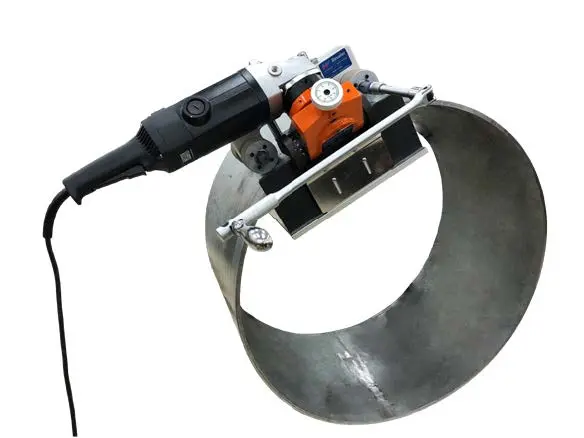

MPB 26 Manual Pipe Beveling Machine

MPB 26 Manual Pipe Beveling System

  • Simple set-up and operation
  • Complete weld preparation in a single pass (at 45°, maximum 15 mm bevel width)
  • Bevel Pipe from 6-26" OD with a single machine
  • Suitable for pipe thickness from 1/8" (3 mm) up to 3/4" (20 mm)

READ MORE

APB 32 Automatic Pipe Beveling Machine

APB 32 Automatic Pipe Beveling System

  • Simple set-up and operation
  • Complete weld preparation in a single pass (at 45°, maximum 15 mm bevel width)
  • Bevel any pipe with a diameter between 10" and 32" OD with the base machine
  • Optional attachment enables beveling pipe of any diameter over 32" as well

READ MORE

PB5 Pipe Beveling Machine

PB5 Pipe Beveling Machine

  • Simultaneously bevel, face and ID counterbore pipe or tubing
  • Available with pneumatic or electric motor options
  • Variety of tool bits available for creating various bevel angles for V and J grove preparation
  • Self-Centering ID Mounted Mandrel

READ MORE

PB10 Pipe Beveling Machine

PB10 Pipe Beveling Machine (Pneumatic or Electric)

  • Bevel, face and counter-bore simultaneously
  • Standard and custom made tool bits available
  • Available in electric and pneumatic versions
  • J-Bevel tool bits available for high welding efficiency on thicker walled pipe

READ MORE

pipe beveling

PBM 1000 High Speed Pipe Beveling System

  • Bevel pipe between 8 - 40" diameter
  • High-speed rotary milling head with replaceable inserts
  • Adjustable bevel angle between 0° - 60°
  • J groove beveling option
  • 11 ton capacity

READ MORE
