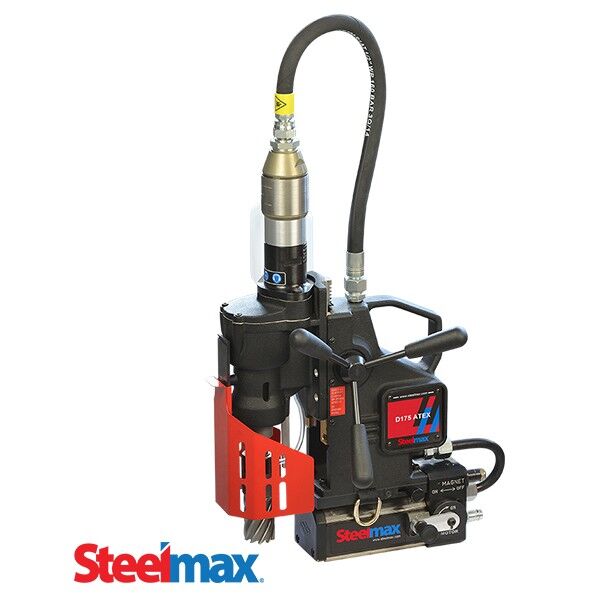

D175 ATEX Pneumatic Drill

PRICE $9,195.00

D175 ATEX is a small portable pneumatic drilling machine which allows cutting holes up to 1.77” (45 mm) diameter. Combination of pneumatic drive and permanent magnetic base eliminate the need of electric power supply thus making this machine an ideal solution in many hazardous environments such as oil drilling platforms, petrochemical plants, oil refineries, shipbuilding and petrochemical industry, where electric appliances are prohibited for safety reasons.



FEATURES & BENEFITS:

  • Intended for use in potentially explosive atmospheres
  • No need for electric power
  • Strong permanent magnet base
  • Great safety features
  • Protection against motor start-up when magnetic base is not activated
  • 2-gear box

This item ships via freight. It arrives on a pallet and can only be shipped to a commercial address.

Please contact us for tapping accessories available with this drill.

product-detail-icon

Manufacturer Warranty

product-detail-icon

Toll-Free Support

product-detail-icon

30-Day Returns

SKU: SM-D175-ATX Category:

Description

  • Intended for use in potentially explosive atmospheres
  • No need for electric power
  • Strong permanent magnet base
  • Great safety features
D175 ATEX Pneumatic Drill Technical Specifications
Motor Power800 W (1.1 HP)
Weight58.5 lbs
(26.5 kg)
Max milling capacity1.77’’ (45 mm)
Max drilling capacity0.79’’ (20 mm)
Stroke6” (150 mm)
Maximum Depth of Cut2"’ (50 mm)
Tool holder0.75’’ (19 mm) Weldon
Air Consumption50 CFM (1400 l/min)
Pressure87 psi (6 bar)
Air connectionCEJN 410 DN 10.4 R 3/8’’ BSPT fitting for quick-coupling
Motor Speed (under Load)190, 290 rpm
Arbor Size3/4” Weldon (19 mm)
SpindleMT2
Minimum work piece thickness0.39’’ (10 mm)
Required ambient temperature32–104o F (0–40o C)
Magnetic base holding force 765 kG (7 500 N)
Magnetic base dimensions3.15’’ ×x 3.15’’ ×x 5.63’’ (80 mm ×x 80 mm ×x 143 mm)
Overall dimensions LxWxH16.7” x 10.5’’ x 27.7” (424 mm x 268 mm x 703 mm)
Product CodeSM-WRT-0632-10-00-00-0

Additional information

Weight 90 lbs
Dimensions 28 × 19 × 8 in
