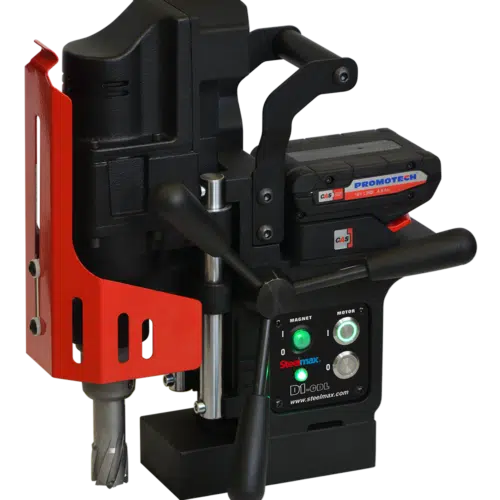

BATTERY OPERATED, COMPACT, MAGNETIC DRILL The Steelmax D1 CDL is a battery powered, compact magnetic drilling machine designed to drill holes with a diameter of 1-7/16” (36 mm) using annular cutters. The D1 CDL is also capable of drilling holes with a diameter of 0.47” (12 mm) with a twist drill bit and has a 2” (50 mm) maximum depth of cut. This magnetic drill has a maintenance free guide rail system that minimizes run-out, maintains accuracy, and reduces cutter breakage. This innovative magnetic drill additionally features an LED monitoring system that produces signals in green and red to communicate the current condition of the drill and give safety information to the operator. Ships with 1 (one) charger and 2 (two) 5.5 amh batteries.
The D200XT drilling machine is suitable for hole cutting and tapping applications. Powerful 1600 W variable speed motor enables annular cutting capacity up to 2” (50mm) and drilling capacity up to 7/8”(23mm). Forward & reverse functions allow tapping up to 3/4" with Steelmax’s new tapping chuck and collet system. Two speed gearbox with continuous speed adjustment allows setting the optimal speed depending on diameter, steel grade or tool quality. The intelligent speed control system maintains constant motor speed regardless of changing loads. Innovative 360-degree LED indicator facilitates proper machine operation and increases work safety. FEATURES • 1600 W powerful motor with heavy-duty 2-speed gearbox • Intelligent speed control system maintains stable speed regardless of load changes • Tapping of through and blind holes • Suitable for use with TCT or HSS cutters • Electronic clutch and speed control • Overload & Overheat protection • Rigid design extends tool life • Tilt sensor stops motor in case of machine break away • 360- degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes • Innovative smart magnet with reduced weight • Intuitive control panel at top of the drill • Large coolant reservoirPlease contact us for tapping accessories available with this drill.
- ANNULAR CUTTER DRILLING MACHINE The D250X magnetic drill has a powerful 1600w motor which enables a cutting capacity up to 2-3/8" and a depth of cut up to 3". Newly designed motor housing and magnet make this large capacity drill lighter than other competitive drills in the market. The maintenance free guide rail system helps reduce cutter breakage and gives optimal cutter life. Optimized drilling speeds for both HSS and TCT annular cutters. FEATURES • 1600 W powerful motor with heavy duty 2-speed gearbox • Maintenance free rail guide system using dual guide bars • Suitable for use with TCT or HSS cutters • Rigid design extends tool life • Drilling with twist drills featuring Weldon shank • Innovative smart magnet with weight reduction • Swarf shield/Cutter guard • Coolant bottle assembly
- VARIABLE SPEED MAGNETIC DRILLING & TAPPING MACHINE The D300XT is a variable speed drilling machine designed to drill holes with diameters of up to 2-3/4" (70mm) by using annular cutters. The machine can also drill holes with diameters of up to 1"( 25mm) by using twist drill bits. The D300XT can change the direction of rotation. This allows tapping of pre-drilled holes by using a tap chuck. The electromagnetic base clamps the machine to ferromagnetic surfaces, making sure that the operator is safe and the machine works correctly. A safety strap protects the machine from falling in case of a clamping loss. Accessories allow you to drill in pipes and cut threads. FEATURES • 360- degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information, e.g. worn brushes • 1600 W motor • Overload & Overheat protection • Tapping of through and blind holes with intelligent load control • Drilling with both TCT & HSS cutters and twist drill bits from small up to large diameters • Full electronic motor control • Electronic clutch (faster than mechanical) • Rigid design extends tool life • Innovative smart magnet with reduced weight • Intuitive control panel at top of the drill • Large coolant reservoir
This item ships via freight. It arrives on a pallet and can only be shipped to a commercial address. Please contact us for tapping accessories available with this drill.
Multi-Purpose HEAVY DUTY MAGNETIC DRILLING MACHINE with Swivel Base The D400XTS magnetic drilling machine is suitable for numerous industrial hole making and tapping applications. The D400XTS has a swivel base which makes it much easier to align the pilot pin or twist drill for accurate drilling to avoid off-center holes, especially when used upside down or sideways. Powerful 2300 W, variable-speed motor enables cutting capacity up to 4-3/4" (120 mm) and drilling capacity up to 1-1/4" (31.75 mm). Forward and reverse functions allows tapping of pre-drilled holes up to 1-1/4" (M30) by using the quick-change tapping system from Steelmax. 4-speed gear and continuous speed adjustment help to set the optimal speed depending on size of diameter, material grade and tool in use. The intelligent speed control system maintains constant speed regardless of the changing load and increases tool life. Innovative 360-degree visual monitoring system facilitates machine operation and increases work safety. FEATURES • 360- degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information, e.g. worn brushes • Innovative swivel base enables local movement of machine for precise hole positioning • Most powerful motor in its class (among MT3 drills) • Overload & Overheat protection • 4-Speed gear with continuous speed adjustment • Intelligent speed control system maintains stable speed regardless of load changes • Tapping of through and blind holes with intelligent load control • Drilling with both TCT & HSS cutters and twist drill bits from small through large diameters • Full electronic motor control • Electronic clutch and speed control • Rigid design extends tool life • Tilt sensor (gyroscopic) stops motor in case of machine break away • Innovative smart magnet with reduced weight • Intuitive control panel at top of the drill • Large coolant reservoirThis item ships via freight. It arrives on a pallet and can only be shipped to a commercial address. Please contact us for tapping accessories available with this drill.
- Out of stock Multi-Purpose HEAVY DUTY MAGNETIC DRILLING MACHINE The D400XT magnetic drilling machine is suitable for many industrial hole making and tapping applications. Powerful 2300 W, variable-speed motor enables cutting capacity up to 4" (100 mm) and drilling capacity up to 1-1/4" (31.75 mm). Forward and reverse function allows tapping of pre-drilled holes up to 1-1/4" (M30) by using the quick-change tapping system from Steelmax. 4-speed gear and continuous speed adjustment help to set the optimal speed depending on size of diameter, material grade and tool in use. The intelligent speed control system maintains constant speed regardless of the changing load and increases tool life. Innovative 360-degree visual monitoring system facilitates machine operation and increases work safety. FEATURES • 360- degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information, e.g. worn brushes • Most powerful motor in its class (among MT3 drills) • Overload & Overheat protection • 4-Speed gear with continuous speed adjustment • Intelligent speed control system maintains stable speed regardless of load changes • Tapping of through and blind holes with intelligent load control • Drilling with both TCT & HSS cutters and twist drill bits from small through large diameters • Full electronic motor control • Electronic clutch and speed control • Rigid design extends tool life • Tilt sensor (gyroscopic) stops motor in case of machine break away • Innovative smart magnet with reduced weight • Intuitive control panel at top of the drill • Large coolant reservoir
This item ships via freight. It arrives on a pallet and can only be shipped to a commercial address. Please contact us for tapping accessories available with this drill.
- POWERFUL HEAVY DUTY MAGNETIC DRILLING MACHINE The D500XT magnetic drill is suitable for many heavy-duty hole making and tapping applications. Powerful 2300 W, variable-speed motor enables cutting capacity up to 6" (152 mm) and drilling capacity up to 1-5/8" (42 mm). Forward and reverse functions allow tapping of pre-drilled holes up to 1-5/8" (M42) by using the quick change tapping system by Steelmax. 4-speed gear and continuous speed adjustment help to set the optimal speed depending on diameter, material grade and tool in use. The intelligent speed control system maintains constant speed regardless of the changing load and increases tool life. The innovative 360-degree visual monitoring system facilitates machine operation and increases work safety. FEATURES • 360- degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information, e.g. worn brushes • Very powerful 2300 W motor • Overload & Overheat protection • 4-Speed gear with continuous speed adjustment • Intelligent speed control system maintains stable speed regardless of load changes • Tapping of through and blind holes with intelligent load control • Drilling with both TCT & HSS cutters and twist drill bits from small up to large diameters • Full electronic motor control • Electronic clutch (faster than mechanical) • Rigid design extends tool life • Tilt sensor (gyroscopic) stops motor in case of machine break away • Innovative smart magnet with reduced weight • Intuitive control panel at top of the drill • Large coolant reservoir
This item ships via freight. It arrives on a pallet and can only be shipped to a commercial address. Please contact us for tapping accessories available with this drill.
