Portable Hydraulic Punches – HP60 & HP110

PRICE

BROCHURE MANUAL LEARN MORE

Available in two models with 35(HP60) ton and 47(HP110)  ton capacities.

Steelmax Portable Hydraulic Punches are ideal solutions to speed the production of holes and slots in beam flanges, angle, channel, plates and bar stock. This steel hole punch features a Double Action design that minimizes cycle times and, coupled with high portability, promotes reduced material handling generating highly efficient hole production compared to other processes.

FEATURES

  • Maximum Hole Diameter 1-1/16″ (27 mm)
  • Double Action Design Prevents Punch Binding and Speeds Retraction
  • Intelligent Control System with Automatic Load Detection and Mode Indicator Light
  • Rugged Forged Steel “C” Frame for Strength and Durability
  • Fully Portable Punch and Pump Package Reduces Material Handling
  • Optional Free Standing Base with Foot Pedal permits Bench Top Operation



SKU: SM-HP-60; SM-HP-110; SM-HP-700 Category:

Description

  • Metal Punching Machine Great for Materials
  • Maximum Hole Diameter 1-1/16″ (27 mm)
  • Double Action Design Prevents Punch Binding and Speeds Retraction
  • Intelligent Control System with Automatic Load Detection and Mode Indicator Light
  • Rugged Forged Steel “C” Frame for Strength and Durability

Punch Capacities for Varying Plate Thicknesses

Plate Thickness1/16"1/8"3/16"1/4"5/16"3/8"7/16"1/2"9/16"5/8"
HP60 (max. plate thickness is 1/2")1-1/16"1-1/16"1-1/16"1-1/16"1-1/16"1"13/16"3/4"--
HP110 (max. plate thickness is 5/8")1-1/16"1-1/16"1-1/16"1-1/16"1-1/16"1-1/16"1-1/16"1"7/8"3/4"
note: round hole capacities (60,000 PSI shear strength material)

Technical Specifications

Hydraulic Punch Head Technical SpecificationsHP60HP110
Max. throat depth2-3/8” (60 mm)4-5/16" (110 mm)
Max. hole1-1/16” (Ø 27 mm)1-1/16" (Ø 27 mm)
Max. oblong hole25 x 18 mm25 x 18 mm
Punch time5 sec8 sec
Max. plate thickness1/2” (13 mm)5/8" (16 mm)
Punch power35 ton47 ton
Working pressure10,000 psi10,000 psi
Weight44 lbs (20 kg)77 lbs (35 kg)
Product NumberSM-HP-60SM-HP-110
Hydraulic Punch Power Pack Technical Specifications
Power supply115V/60Hz
Motor power1500 W
Working pressure10,000
Pump output1.5 L/min
Oil capacity10 L
Product NumberSM-HP-700
note: contact Steelmax for other voltage options

Additional information

Weight 71 lbs
Dimensions 19 × 17 × 10 in
Hydraulic Punch AccessoriesPart NumberProduct Image
Overhead support for punch
Allows for easy manipulation of punch & power pack as single unit.		SM-ZUR-0517-15-00-00-0
Freestanding base for punch
With foot petal activation for bench operation.		SM-ZST-0507-91-00-00-0

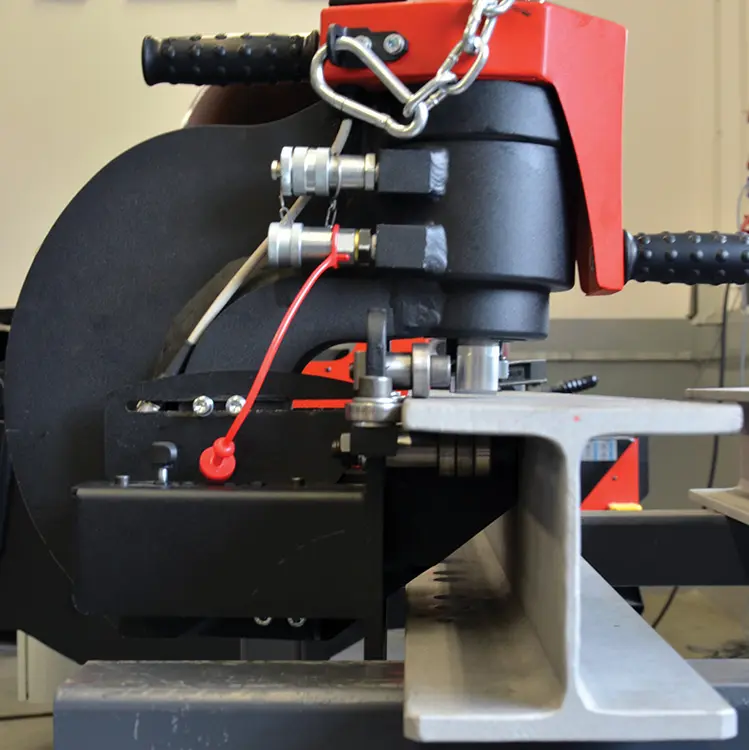

Wheeled carriage for punch
Permits smooth & efficient lineal movement along the work piece.		SM-PRW-0507-90-00-00-0

Application Use Cases

The S14-M suits mechanical fabrication, transportation, and construction work where angled cuts matter as much as a clean edge. It handles pipe, plate, channel, conduit, angle iron, metal studs, rebar, and tubing, making it useful for structural steel fabrication, custom metal frames, and repeatable angle cuts on production runs. Its 1750W motor and portable 72 lb frame support both jobsite work and continuous shop use.

Frequently Asked Questions

The S14-M offers a wider +/-46° mitering range compared to the S14's 45°, plus a heavier cast-aluminum base for added stability. Both share the same 1750W motor, 14" blade, and pipe capacity, with the S14-M priced for its extra versatility.

The S14-M comes in both 120V/60Hz (SM-S-14-M) and 230V/50Hz (SM-S-14-M-230) versions, so it runs on standard shop power or 230V circuits depending on your facility's setup.

A newly designed 14" laser-cut TCT blade for mild steel is included. The 1" arbor bore accepts other compatible 14" blades, so operators can swap in one suited to aluminum, stainless, or thinner materials.

The S14-M miters up to +/-46°, letting operators dial in custom angles for fabrication layouts. The precision miter table locks at the set angle, delivering repeatable, accurate cuts across a production run.

At 72 lbs, the S14-M is portable enough for jobsite use while still built for shop duty. Steelmax positions it for both field and shop environments, making it a flexible pick either way.
