BM-25S Plate Beveling Machine for Stainless Steel

PRICE

PORTABLE HEAVY DUTY BEVELING MACHINE FOR STAINLESS STEEL

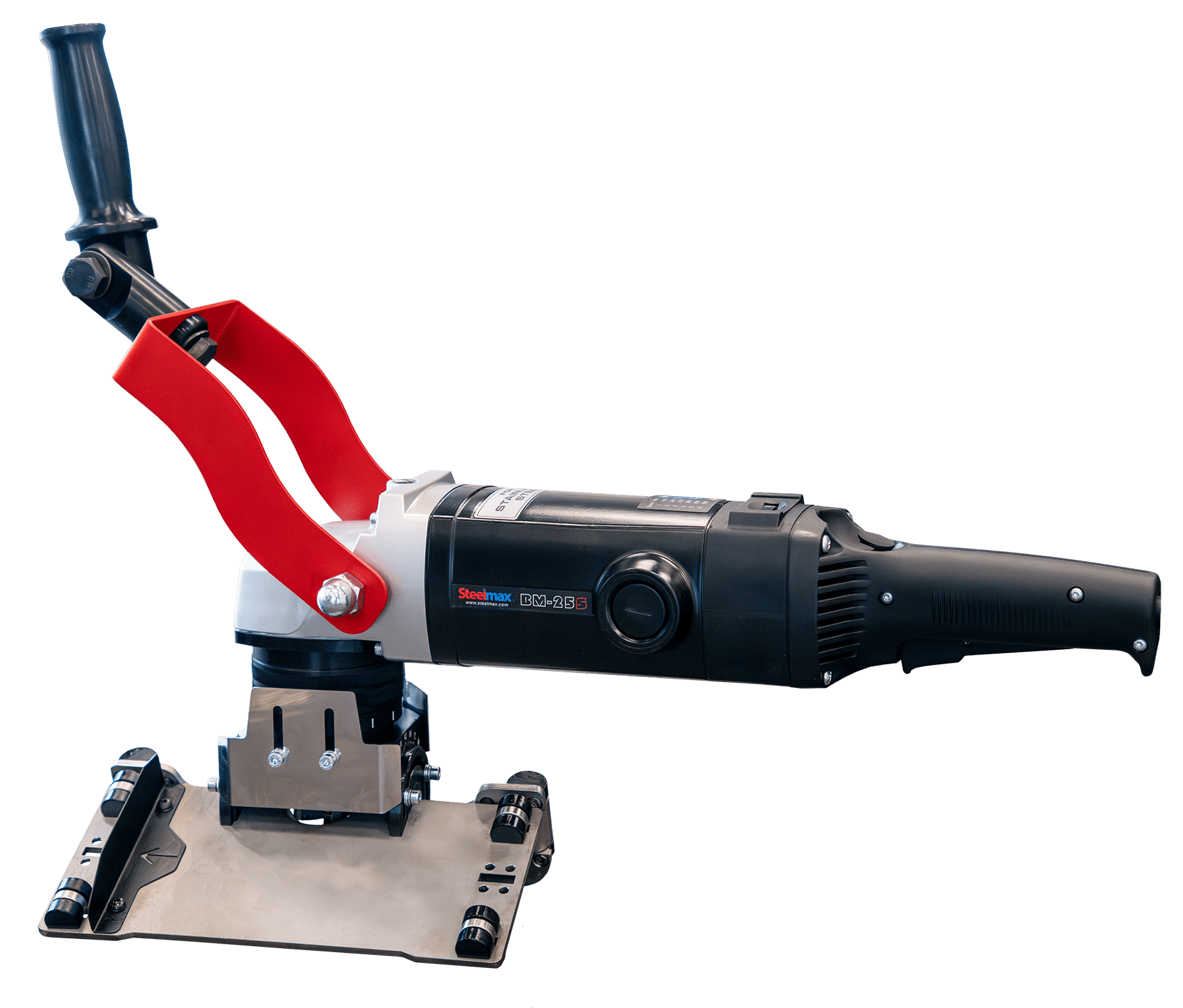

The Steelmax BM-25S is a reliable, heavy-duty portable beveling machine designed specifically for stainless steel applications. Built for performance and precision, it features a powerful motor and a face milling beveling head that ensures smooth operation and exceptional results—job after job.

With the ability to bevel straight edges up to 1 inch wide (25 mm), the BM-25S is ideal for prepping material for welding or finishing. The variable spindle speed allows operators to fine-tune cutting conditions based on the material and application, increasing both efficiency and tool life.

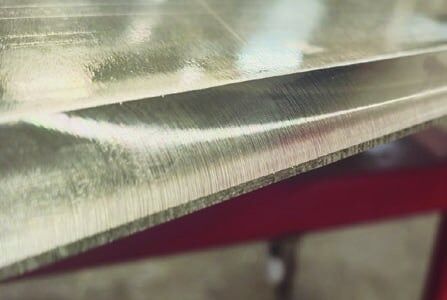

The continuously adjustable bevel angle, variable from 0° to 90°, gives full control over the cutting geometry, while the depth of cut can be precisely set to match your needs. Whether you’re doing light edge prep or more aggressive material removal, the BM-25S delivers clean, accurate bevels every time.

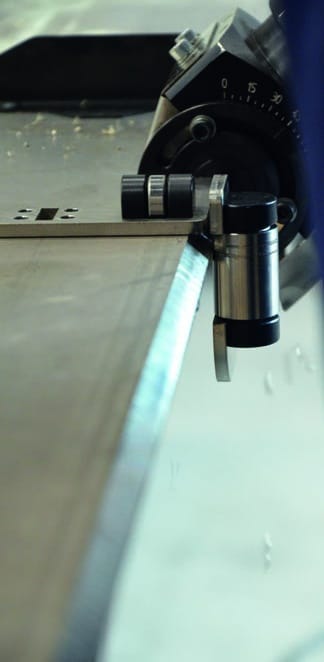

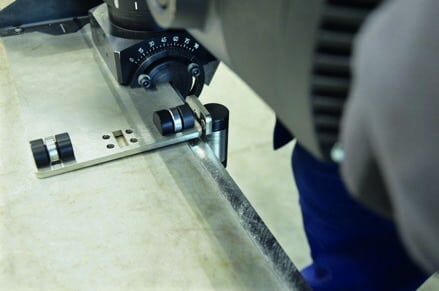

Designed with operator ease in mind, the unit includes a roller guide system that makes it smooth and easy to maneuver. All guide components are made of stainless steel, helping to prevent contamination and ensuring long-term durability.

To protect your investment and keep operations safe, the BM-25S is equipped with a modern electronic motor overload module that safeguards the operator, the machine, and tooling.

When stainless steel is used, the BM-25S offers the right blend of strength, control, and reliability.



SKU: SM-BM25-SS Categories: , ,

Description

  • Continuous bevel width adjustment from 0 to 90 degrees
  • Guide set with rollers can be rotated through 360 degrees
  • Precision guide plates ensure accurate and repeatable cutting performance
  • Motor overload protection
  • Variable spindle speed
  • Powerful 2200 w motor
  • 1”(25) mm maximum bevel
  • Adjustable grip & handle for ergonomic operation
BM25 Technical Specifications
Power Supply110-120V/50-60Hz or 220-240V/50-60Hz
Motor2200W
Motor speed (without load)1800-5850 rpm
Maximum bevel width1" (25 mm)
Bevel angles depending on milling head0 Degrees-
90 Degrees (option)
Min. workplace thickness0.08" (2 mm)
Required Ambient Temperature32-104° (0-40°C)
Part NumbersSM-BM 25 (120V/ 50-60Hz) SM-BM 25-230 (230V/ 50-60Hz
Weight (without milling head)28 lbs (12.5 kg)

Additional information

Weight28 lbs
Dimensions31.6 × 13.5 × 6.7 in
BM7 Accessories, Consumables and Spare Parts
SM-GLW-0540-08-00-00-0Beveling milling head 45°
SM-GLW-0540-09-00-00-0Beveling milling head 30°
SM-PLY-000391Beveling insert for steel (4 Pieces Req'd)
SM-PLY-000423Beveling insert for aluminum (4 Pieces Req'd)
SM-PLY-000360Radius insert R2
SM-PLY-000161Radius insert R5
SM-PLY-000160Radius insert R4
SM-PLY-000159Radius insert R3
SM-SRB-000289Beveling Insert Screw
SM-RLK-0540-08-02-00-0Guide Roller
SM-SMR-000005Anti-Seize Grease for Insert Screws
SM-NKL-0540-15-00-00-0Anti-Scratch Cover for Guide Plate
SM-SCZ-000009Carbon Brush for 115V/230V Motors
SM-UST-0509-16-00-00-0Set-up Tool for Radius Milling
