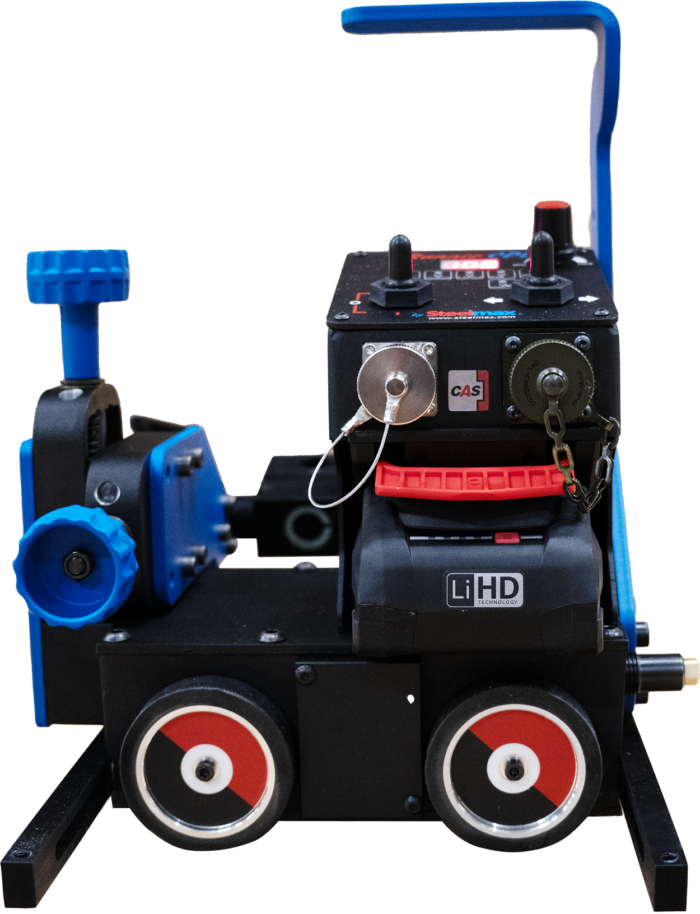

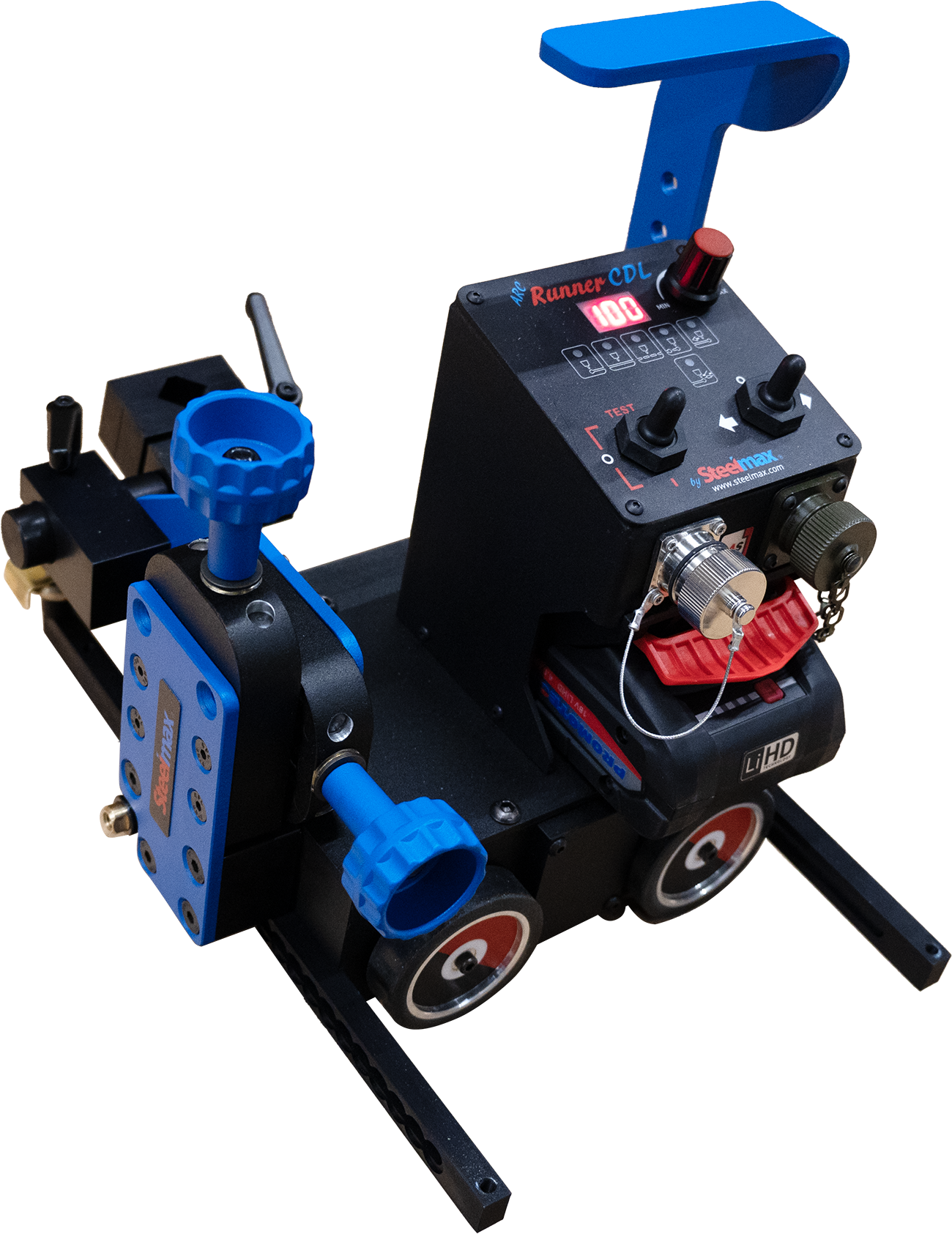

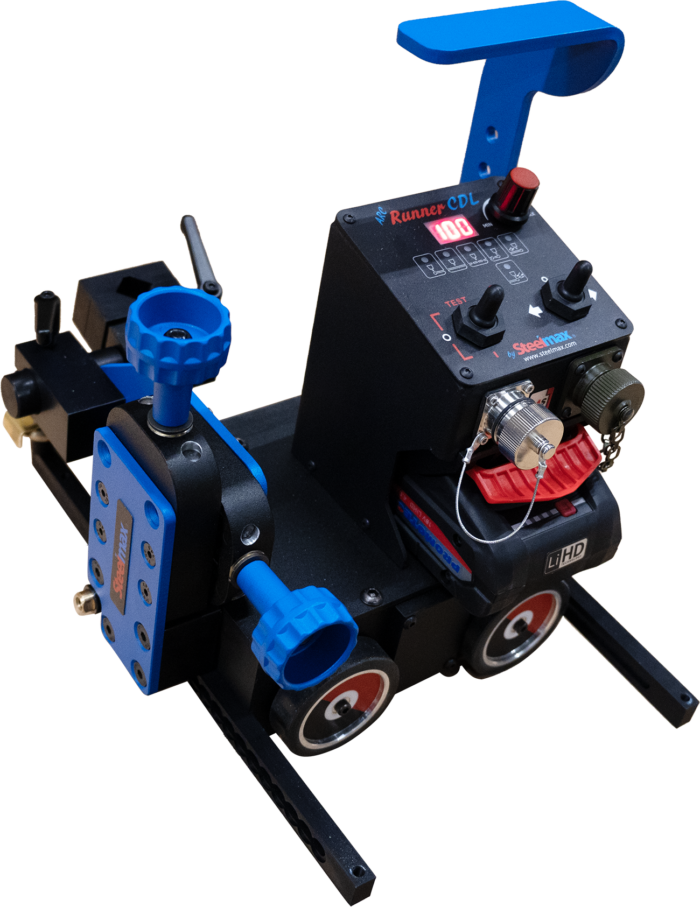

Arc Runner CDL Battery Operated Programmable Welding Tractor

PRICE

The ARC Runner CDL is a state-of-the-art, battery-powered, programmable welding tractor designed to deliver exceptional performance in producing both fillet and butt welds, whether in stitch or continuous welding modes. This innovative welding tractor offers unparalleled convenience and flexibility, eliminating the need for cumbersome cables and allowing for seamless operation in various environments.

With its advanced programming function, the ARC Runner CDL enables you to precisely set the desired welding path by specifying critical parameters such as weld length, skip length, and crater filling at both the beginning and end of the welds. This ensures consistent and high-quality welds every time.

Powered by the robust CAS LiHD (High Density Lithium Ion) battery, the ARC Runner CDL provides ample power to handle even the most demanding applications. This high-capacity battery ensures that you can work uninterrupted, without the hassle of managing power cords, making it ideal for on-site and remote welding tasks.

The ARC Runner CDL features sophisticated travel speed control and stabilization, allowing for precise matching of weld bead geometry to the required specifications. This precision reduces costly over-welding and significantly decreases filler metal consumption, enhancing overall efficiency and productivity. Additionally, the ARC Runner CDL can produce weave welds with the use of an optional pendulum oscillator. This feature allows for meticulous control of weave width, weave speed, and left/right side dwell times, ensuring optimal weld quality and consistency.

Experience the ultimate in convenience and performance with the ARC Runner CDL, the battery-powered cordless welding tractor that sets a new standard in welding technology.



FEATURES

  • Convenient 18V DC battery supply, for seamless power management.
  • High Density Lithium Ion (LiHD) battery providing maximum power availability for extended periods, ensuring uninterrupted performance.
  • Intelligent battery management system for long-lasting and reliable performance.
  • Robust maintenance free, 4-wheel planetary gear drive system
  • with magnetic traction for stable and precise movement of the tractor.
  • Compact and lightweight design with a durable aluminum cast housing for easy handling and longevity.
  • Optional pendulum oscillator for producing precise weave welds, enhancing welding versatility.
  • Auxiliary accessories making the ARC Runner CDL suitable for various applications with carbon steel, stainless steel, and aluminum.
  • Equipped with limit switches for added safety and operational control.
  • Permanent magnet clamping system with on/off lever ensures positive magnetic traction
  • Standard torch holder for welding torches with diameters of  5/8″ – 7/8″ (16-22 mm); optional large holder for diameters up to 1-3/8″ (35 mm)
  • Precise cross-slide torch adjustment
  • Multifunctional LED display and 2 function buttons for welding pattern programming
  • Closed-loop speed control system stabilizes travel speed to reduce weld defects and costly repair work
  • Consistent heat input reduces distortion
  • Automatic ARC ON/OFF system initiates welding and travel, simultaneously
  • Improves work environment – reduces fatigue and repetitive stress – removes operator from heat and fumes
  • Capable of carrying and controlling 2 torches (without oscillation)
  • Up to 40 complete programs may be stored in non-volatile memory

Description

  • Simple and ergonomic programming of welding patterns and stitch welding parameters
  • Multifunctional LED display presenting travel speed, units, welding settings, and diagnostic messages
  • Closed-loop speed control system stabilizes travel speed, enabling uniform heat input for consistently high-quality welds
  • Convenient 18 V DC battery supply (compatible with L’il Runner CDL, Torch Runner CDL & Eco Runner Battery)
  • High Density Lithium Ion battery (LiHD) ensures maximum power availability for extended periods
  • Intelligent battery management for long-lasting performance
  • 4-wheel drive system with magnetic traction for stable movement of the tractor
Arc Runner Technical Specifications
Part NumberSM-WC-AR or SM-WC-AR-230
Power Supply115-230 VAC / 50-60 Hz

(separate units due to plug interface)
Welding PositionVertical/Horizontal
Chassis to material clearance3/16? (5 mm) minimum
Drive SystemFriction drive with worm gear reduction

Four wheel drive, heat resistant silicone wheels
Tracking method2 roller guides in various configurations
Towing ForceVertical: 33.7 ft. lbs (150 Nm)

Horizontal: 49.5 ft. lbs (220 Nm)
Torch adjustment:

Up-Down

Left-Right
1-3/8? (35 mm)

1-3/8? (35 mm)
Guide roller adjustment3? (75 mm)
Control panel:

Travel direction switchFunction button F1Function button F2Arc ignition switchSpeed Knob
Program start, direction left / stop / program start, direction rightContinuous welding, dash, crater fill, backweldValue change “+” or “-”TEST / 0 / IHorizontal speed: 0 – 47-1/4?/min (0-1200 mm/min)

Vertical speed: 0 – 43-3/8?/min (0-1100 mm/min)
Automatic stopLimit switches at both ends
Noise Level< 70 dB
Dimensions15? x 14-5/8? x 15-3/8? (382 mm x 372 mm x 390 mm)
Weight29.8 lbs (13.5 kg)



Additional information

Weight37 lbs
Dimensions19 × 16 × 16 in
Arc Runner Portable & Programmable Welding Carriage Accessories
Oscillator
Enables oscillation
Dual Torch Mount
Enables mounting of second torch for dual-sided fillet welding
Product Code: SM-PDT-0466-40-00-00-0
Torch Extension Arm
Enables extended reach for torch placement
Product Code: SM-PRD-0466-43-00-00-0
Edge Following Guide Arms
Enables guiding off an outside edge
Product Code: SM-PRW-0476-21-00-00-0
Adjustable Guide Arms
Enables guiding on lap joints and templates
Product Code: SM-PRW-0476-22-00-00-0
Flexible Guide Rail
72” Long for LR and AR
Product Code: SM-PRW-0466-50-01-01-0
Flexible Guide Rail Alignment Tool
Quickly aligns the flexible guide rail to the appropriate distance from the joint
Product Code: SM-UST-0466-53-00-00-0
Rail Guide Arms for Arc Runner (set of 2)
Product Code: SM-PRW-0476-50-01-00-1
Magnet for Flex Rail
(LR and AR) - 10 required
Product Code: SM-BLO-0466-50-01-10-0
Quick Connect Torch Holder
Quick connect/release torch holder
Product Code: SM-ZRZ-0466-04-01-00-0
Oscillator Technical Specifications
Oscillation typePendulum
Amplitude R-150 mm0.08-1.2” (2-30 mm)
Frequency12-115 cycles/min
Dwells0-3 s.
Weight5.5 lbs (2.5 kg)
Product CodeSM-WC-AR-OSC
