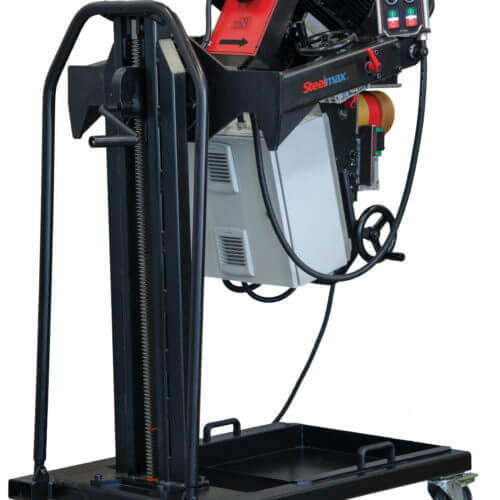

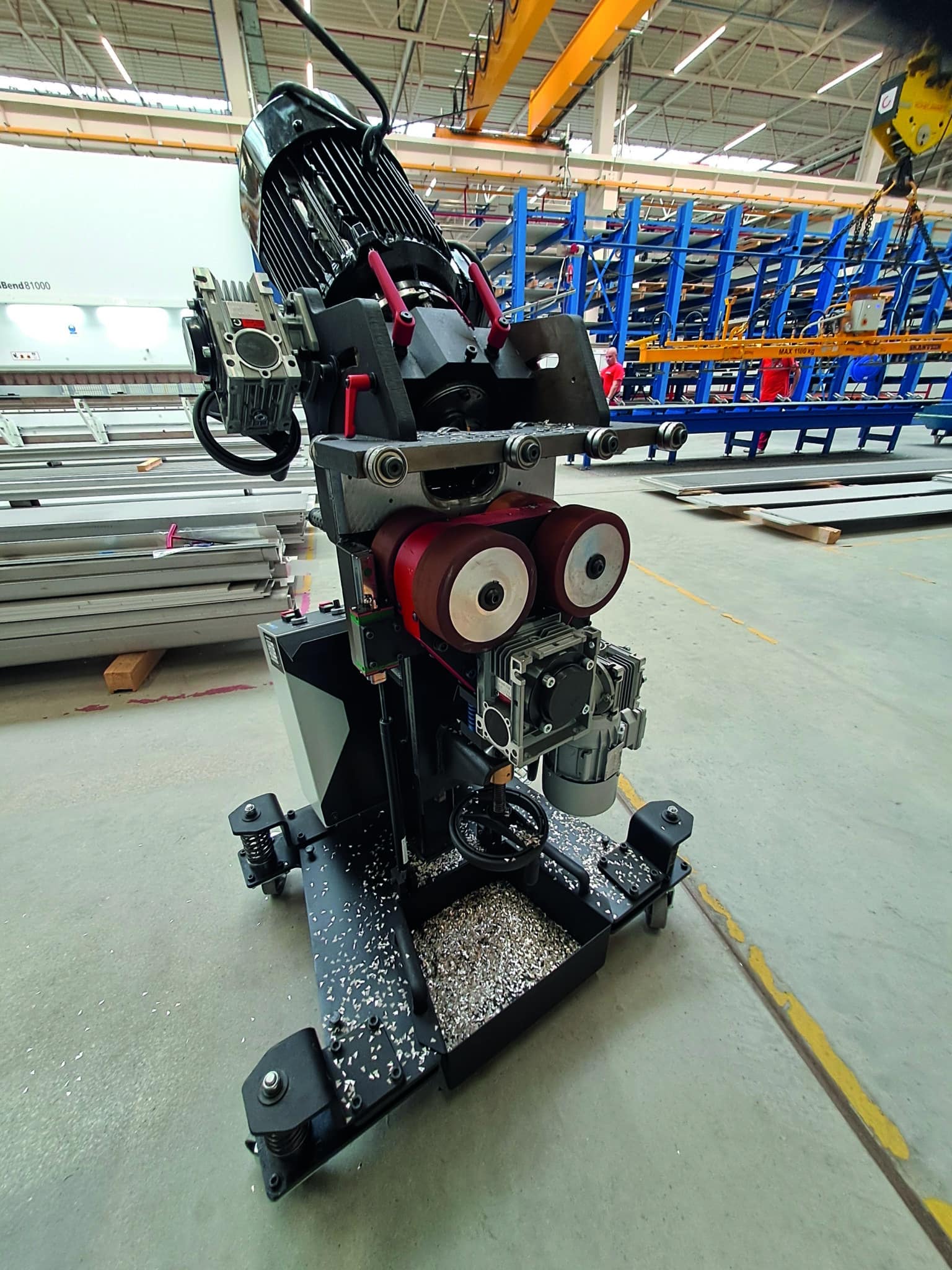

ABM 50 DD VS-Auto Feed Plate Beveler

PRICE

Self-Propelled Beveling Machine with Adjustable Spindle Speed Improves Efficiency & Safety

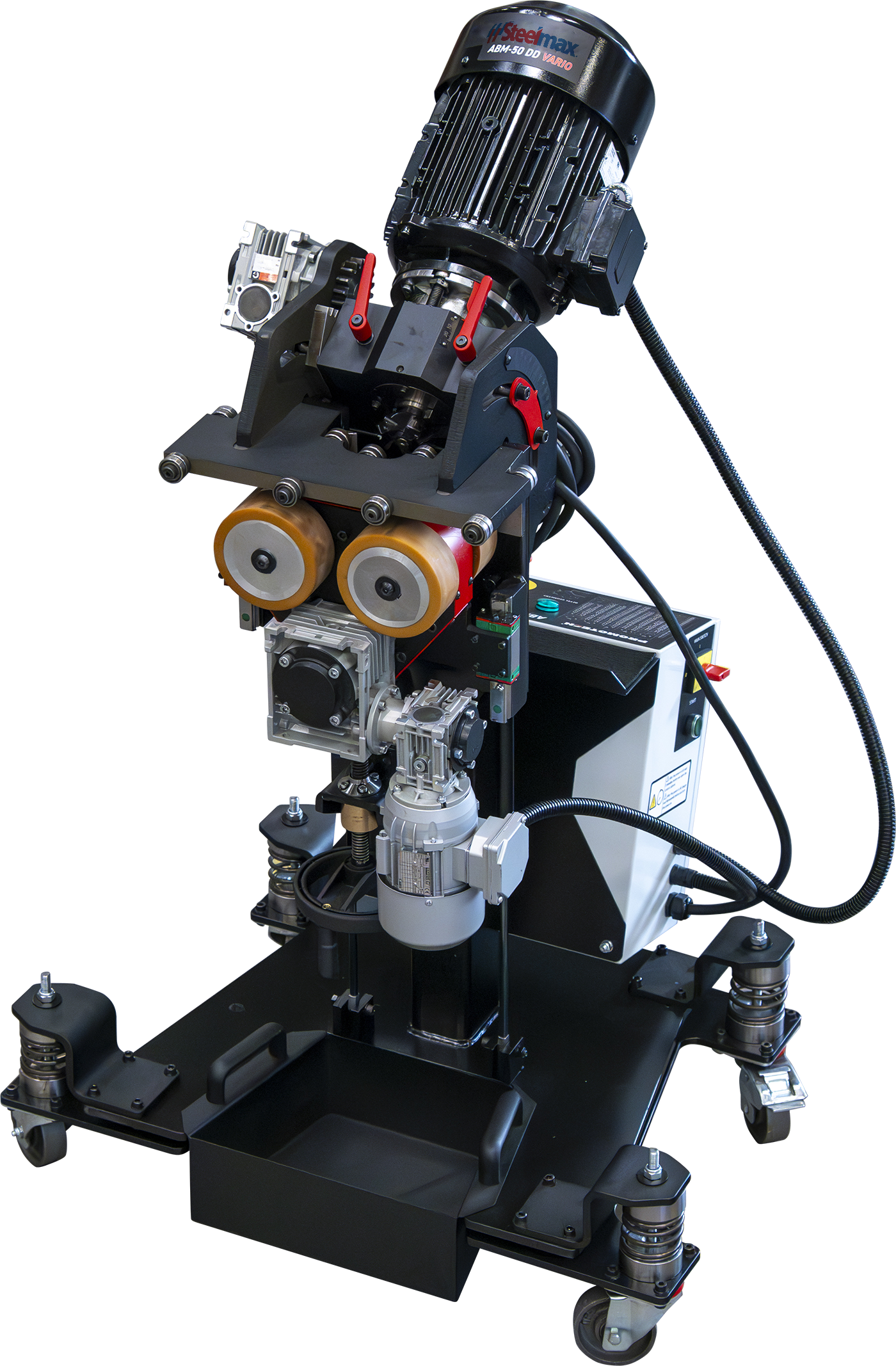

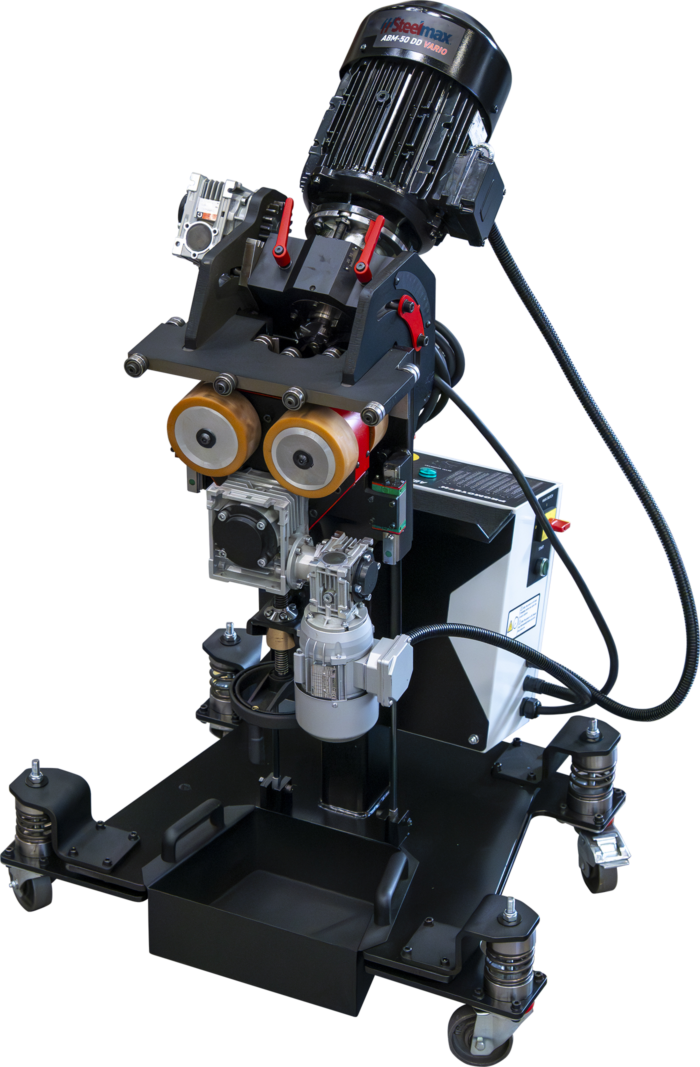

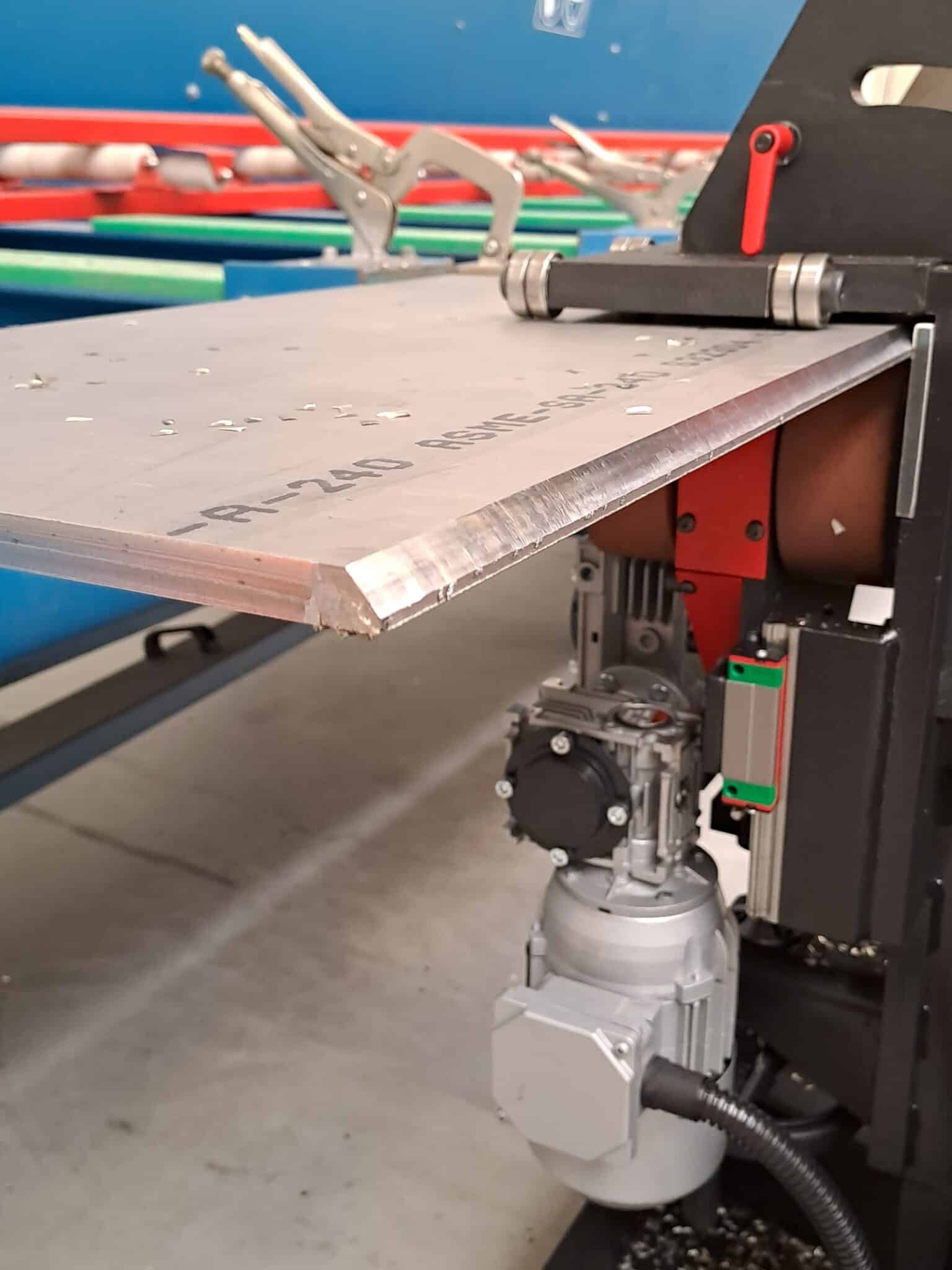

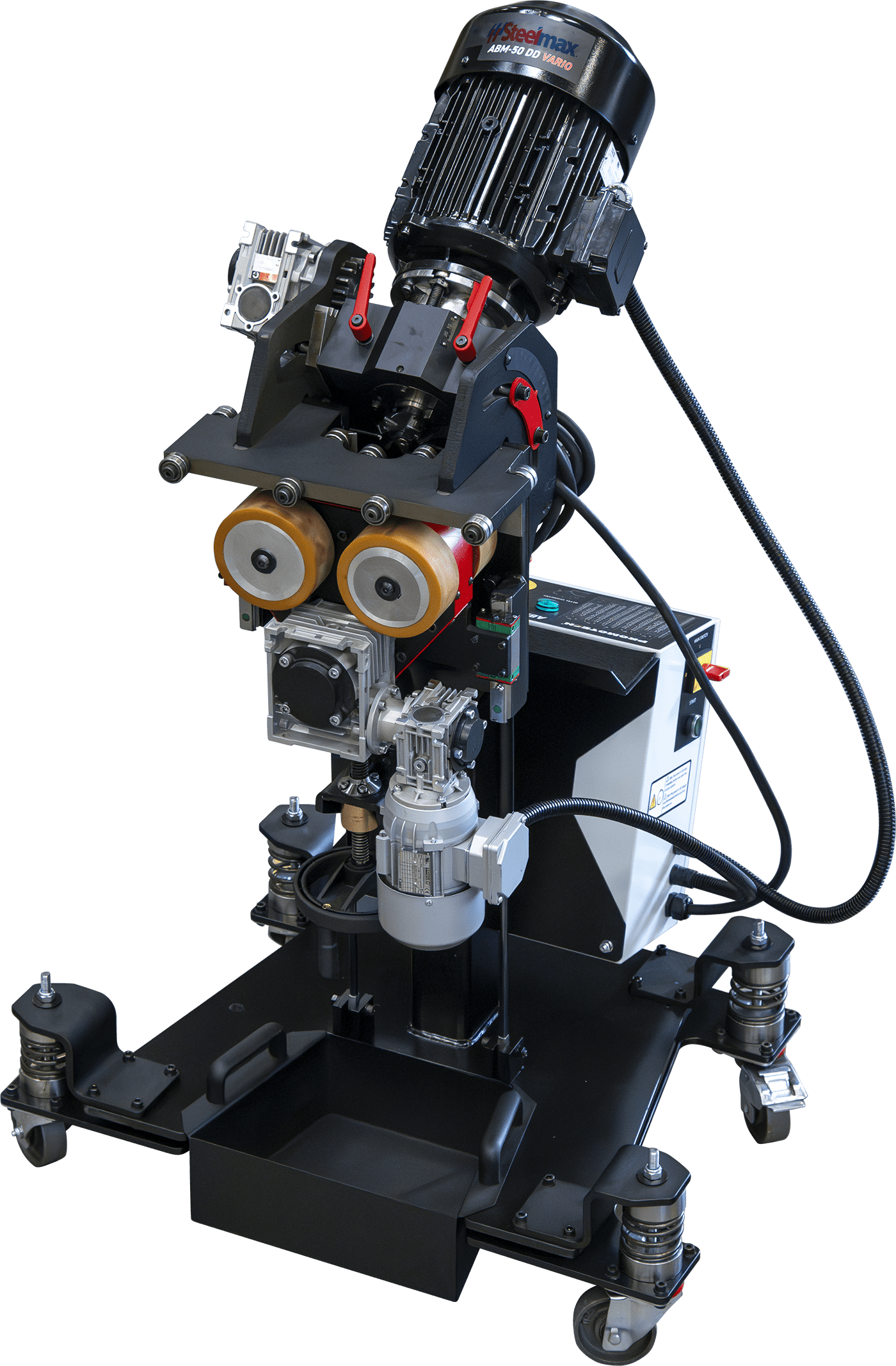

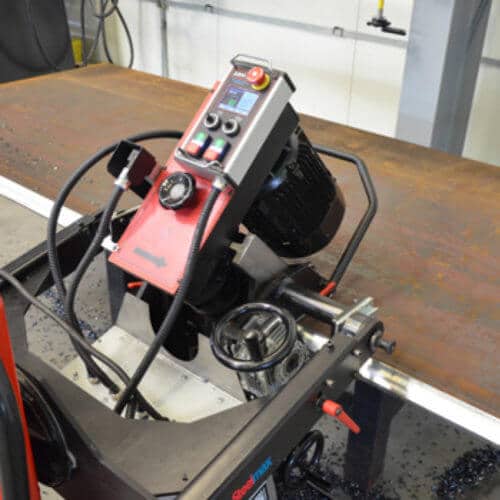

Presenting the ABM-50 DD VS from Steelmax, a leading authority on beveling machines. This self-propelled beveling machine delivers high-quality bevels up to 2 inches (50 mm) wide without thermal distortion or heat-affected zones on plates from 5/16 inch to 3 1/8 inches (8 mm to 80 mm) thick.

The adjustable spindle speed (500-1450 rpm) and feed rate, combined with an LED load monitoring system, ensure optimal performance across various materials, including stainless steel, duplex, alloys, and Hardox. The LED load monitoring system provides real-time feedback using green, yellow, and red indicators to help prevent motor overloading and protect the milling system under varying load conditions. This feature enhances the machine’s reliability and longevity, ensuring consistent, high-quality bevels.

The ability to continuously adjust bevel angles from 15° to 70°, makes it versatile for both large construction projects and workshop settings. The auto-feed drive system travels up to 3.9 feet (1.2 m) per minute, reducing operator effort while improving consistency and productivity. Spring-loaded castors ensure smooth operation over surface irregularities. making the ABM50 DD VS an indispensable tool for demanding beveling applications.

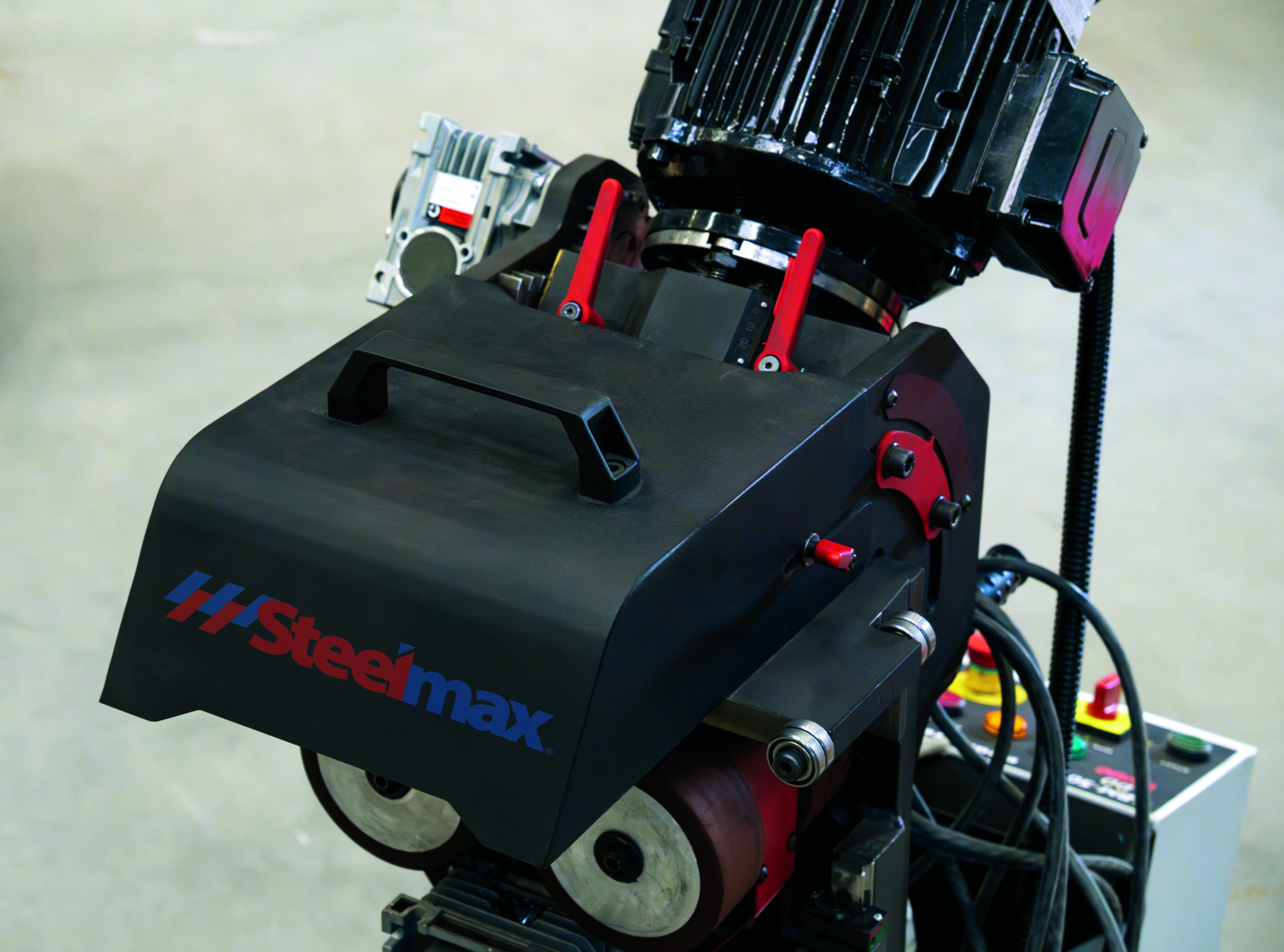

The high-performance rotary milling head with five 4-sided indexable inserts produces clean, cold-formed bevels, preserving material integrity. Rotatable and replaceable inserts maximize tool life, and a wide selection of insert types ensures high-quality performance across various steel materials. This mechanical approach eliminates the risk of heat-affected zones, maintaining the structural integrity and mechanical properties of the base materials.

The ABM-50 DD Vario is a robust, heavy-duty, versatile solution for demanding beveling applications, offering a highly efficient alternative to thermal or manual edge preparation. By reducing processing time and operational costs, this machine stands out as a valuable asset for any steel preparation task.

FEATURES

  • Self-feeding for consistent bevel geometry from end-to-end
  • Real-time measurement and on-screen display of exact bevel geometry and milling parameters
  • Variable spindle speed for milling ferrous and non-ferrous materials including high tensile strength materials
  • Rotary milling head with 4-sided indexable inserts produces accurate, high-quality weld ready finish without thermal distortion
  • Built-in overload protection
  • Compensates for uneven floors
  • Portable Machine that can easily be moved throughout the shop
SKU: SM-ABM50-DD-VS Categories: , ,

Description

  • Self-Propelled Precision Automatically drives along the plate edge at speeds of up to 47.2 inches per minute (1.2 m/min), delivering smooth and consistent bevels with minimal operator fatigue.

  • Auto-Feed Machining Enhances ergonomics, comfort, and productivity by eliminating manual feeding—ideal for repetitive or large-scale beveling tasks.

  • Wide Bevel Angle Range  continuous bevel angle adjustment from 15° to 70°, allowing unmatched flexibility across various weld prep requirements.

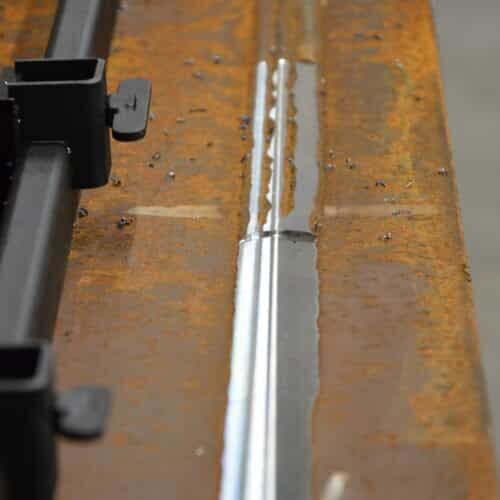

  • Thermal Distortion Free results, high-quality bevels with no thermal distortion or heat-affected zones, suitable for plate thicknesses ranging from 5/16″ to 3-1/8″ (8–80 mm).

  • Precision Bevel Width Control Achieves adjustable bevel widths up to 2″ (50 mm) at a 45° angle, enabling consistent and repeatable results with superior finish.

  • Variable Spindle Speed  for machining a wide variety of steel grades, ensuring optimal performance regardless of material type.

  • Integrated LED Load Monitoring Built-in LED system displays motor load in green, yellow, and red indicators—helping operators avoid overload and extend tool life.

  • Top Beveling with Adjustable Working Height Allows top-side beveling with a height range from 33.1″ to 40.9″ (840–1040 mm), promoting operator comfort

  • High-Efficiency Milling Head Outfitted with five 4-sided indexable cutting inserts, maximizing cutting life and reducing downtime between tool changes.

  • Versatile Cutting Insert Options A wide range of specialized inserts available, optimized for superior performance across multiple materials including carbon steel, stainless steel, and more.

  • Stationary Operation Mode Easily converts for bench-top use to machine smaller workpieces, making it a flexible solution for shops of any size.

Technical Specifications

ABM 50 Technical Specifications
Voltage380 - 480V 3 Phase 50-60Hz
Power8.7 HP (6.5 kW)
Spindle speed (no load)300-800 RPM
Feed speed0"-47" ipm
Bevel angle15°-60° infinitely variable
Maximum bevel widthVaries with angle setting
2-5/8" (66 mm) at 15°
2" (50 mm) at 45°
Maximum depth of cut per pass1/4" (6 mm)
Plate thickness range5/16" - 3-1/8" (8 -80 mm)
Weight700 Lbs (320 Kg)
Part numberSM-ABM50

Bevel Capacities

Bevel AngleMaximum Bevel Face WidthRecommended # of Passes
15°2.60" (66 mm)4 passes
20°2.32" (59 mm)4 passes
25°2.16" (55 mm)4 passes
30°2.05" (52 mm)5 passes
35°2.00" (50 mm)5 passes
40°2.00" (50 mm)5 passes
45°2.00" (50 mm)5 passes
50°2.00" (50 mm)5 passes
55°2.00" (50 mm)5 passes
60°2.00" (50 mm)5 passes

Additional information

Weight85 lbs
Dimensions40 × 47 × 63 in

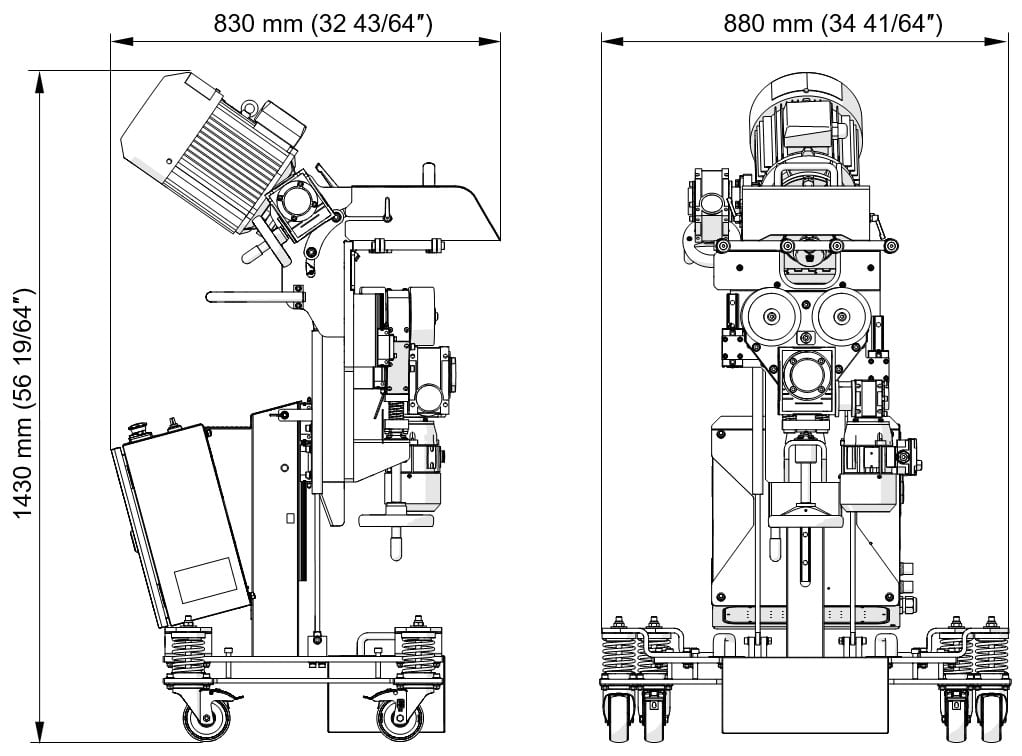

ABM 50 Dimensions
