Steelmax HSS Annular Cutters

PRICE $32.00$228.00

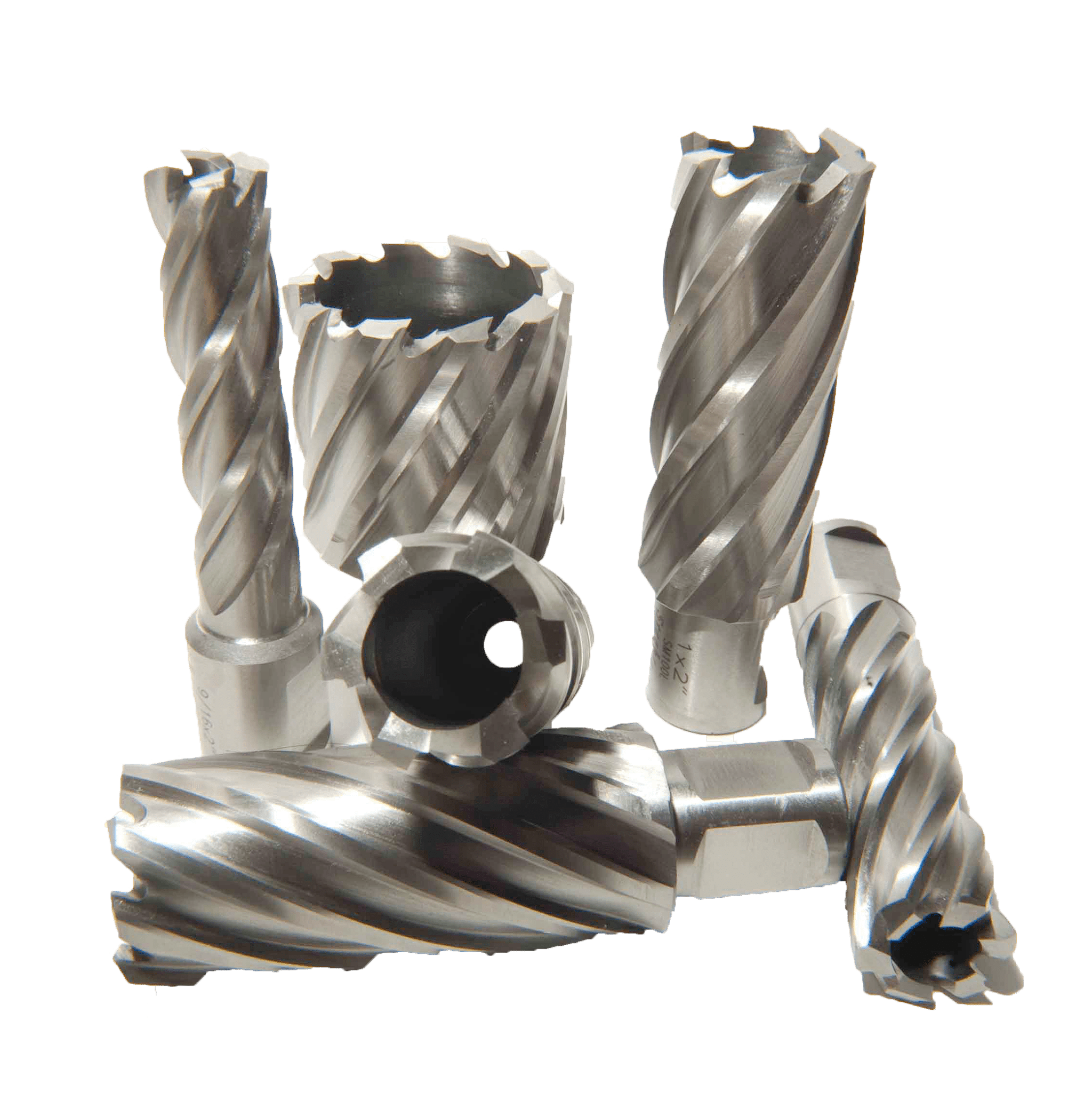

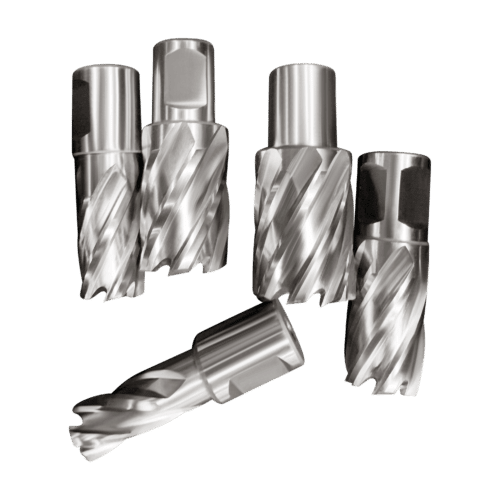

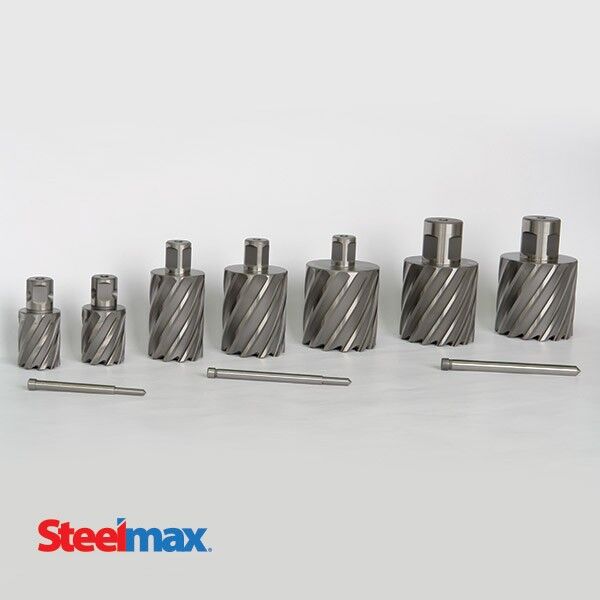

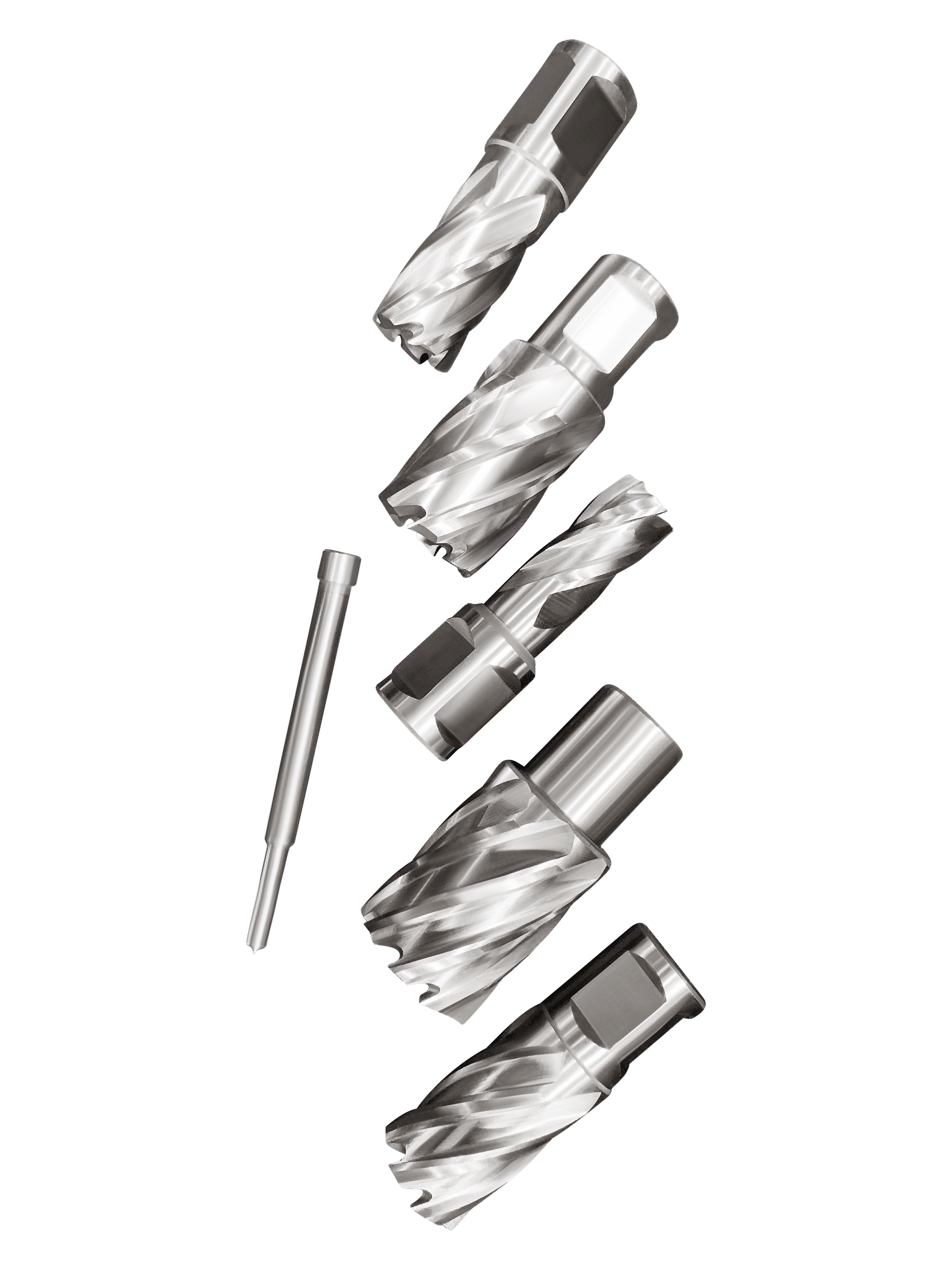

Steelmax HSS cutters utilize an M2Al (aluminum additive) formulation which increases cutter life due to better heat propagation characteristics and a less brittle character compared to other M2 formulations, such as those using a cobalt additive.  HSS cutters are most cost effective for mild steel applications and holes up to 2-3/8″ in diameter in material up to 2″ thick. HSS annular cutters can be re-sharpened to extend cutter life.

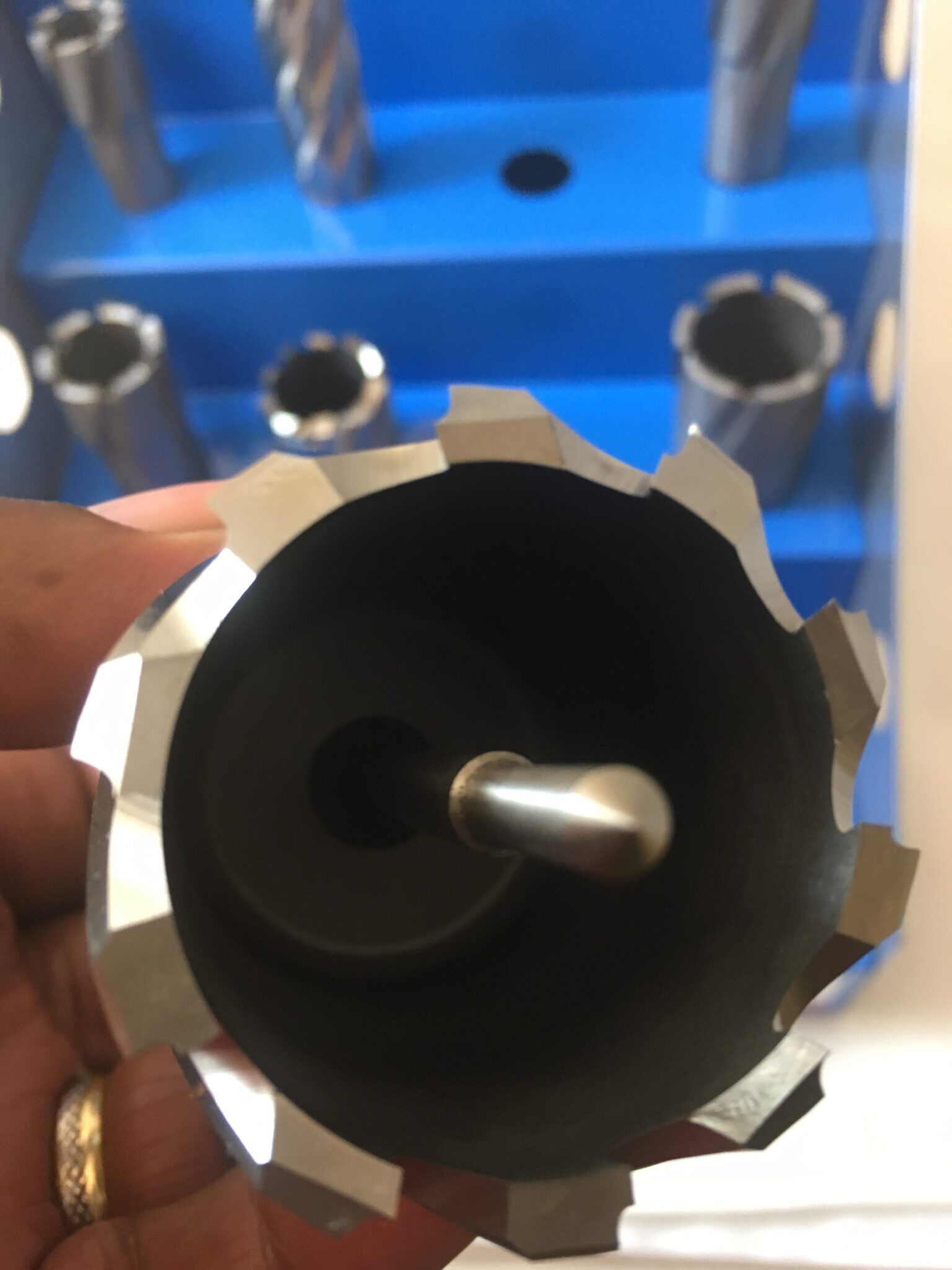

All Steelmax cutters ship with a pilot pin installed at no extra charge.*

Steelmax High Performance Cutting Fluid should be used with all annular cutters for optimal cutting performance and to extend cutter life.  Our High Performance Cutting Fluid is a water-based cutting fluid that is bio-degradable and does not require time-consuming cleanup prior to welding or assembling parts.

*6″  HSS Cutters do not ship with pilot pinClick here to purchase a one-or two-piece pilot pin with your 6″ annular cutter order.

SKU: N/A Category:

Description

  • Steelmax HSS cutters utilize an M2Al (aluminum additive) formulation
  • Steelmax High Performance Cutting Fluid should be used with all annular cutters for optimal cutting performance and to extend cutter life
  • All Steelmax cutters ship with a pilot pin installed at no extra charge
HSS (M2AL) ANNULAR CUTTERS - 3/4" WELDON SHANK - IMPERIAL SIZESOpen PDF
Cutter
Diameter
(in)
Decimal
Equivalent
Steelmax Part Number
1" Depth of CutIncluded Pilot Pin2" Depth of CutInlcuded Pilot Pin
7/160.4375SM-AC-04375-1SM-PP-01SM-AC-04375-2SM-PP-03
1/20.5000SM-AC-05000-1SM-PP-02SM-AC-05000-2SM-PP-04
9/160.5625SM-AC-05625-1SM-PP-02SM-AC-05625-2SM-PP-04
5/80.6250SM-AC-06250-1SM-PP-02SM-AC-06250-2SM-PP-04
11/160.6875SM-AC-06875-1SM-PP-02SM-AC-06875-2SM-PP-04
3/40.7500SM-AC-07500-1SM-PP-02SM-AC-07500-2SM-PP-04
13/160.8125SM-AC-08125-1SM-PP-02SM-AC-08125-2SM-PP-04
7/80.8750SM-AC-08750-1SM-PP-02SM-AC-08750-2SM-PP-04
15/160.9375SM-AC-09375-1SM-PP-02SM-AC-09375-2SM-PP-04
11.0000SM-AC-10000-1SM-PP-02SM-AC-10000-2SM-PP-04
1 1/161.0625SM-AC-10625-1SM-PP-02SM-AC-10625-2SM-PP-04
1 1/81.1250SM-AC-11250-1SM-PP-02SM-AC-11250-2SM-PP-04
1 3/161.1875SM-AC-11875-1SM-PP-02SM-AC-11875-2SM-PP-04
1 1/41.2500SM-AC-12500-1SM-PP-02SM-AC-12500-2SM-PP-04
1 5/161.3125SM-AC-13125-1SM-PP-02SM-AC-13125-2SM-PP-04
1 3/81.3750SM-AC-13750-1SM-PP-02SM-AC-13750-2SM-PP-04
1 7/161.4375SM-AC-14375-1SM-PP-02SM-AC-14375-2SM-PP-04
1 1/21.5000SM-AC-15000-1SM-PP-02SM-AC-15000-2SM-PP-04
1 9/161.5625SM-AC-15625-1SM-PP-02SM-AC-15625-2SM-PP-04
1 5/81.6250SM-AC-16250-1SM-PP-02SM-AC-16250-2SM-PP-04
1 11/161.6875SM-AC-16875-1SM-PP-02SM-AC-16875-2SM-PP-04
1 3/41.7500SM-AC-17500-1SM-PP-02SM-AC-17500-2SM-PP-04
1 13/161.8125SM-AC-18125-1SM-PP-02SM-AC-18125-2SM-PP-04
1 7/81.8750SM-AC-18750-1SM-PP-02SM-AC-18750-2SM-PP-04
1 15/161.9375SM-AC-19375-1SM-PP-02SM-AC-19375-2SM-PP-04
22.0000SM-AC-20000-1SM-PP-02SM-AC-20000-2SM-PP-04
2 1/162.0625SM-AC-20625-1SM-PP-02SM-AC-20625-2SM-PP-04
2 1/82.1250SM-AC-21250-1SM-PP-02SM-AC-21250-2SM-PP-04
2 3/162.1875SM-AC-21875-1SM-PP-02SM-AC-21875-2SM-PP-04
2 1/42.2500SM-AC-22500-1SM-PP-02SM-AC-22500-2SM-PP-04
2 5/162.3125SM-AC-23125-1SM-PP-02SM-AC-23125-2SM-PP-04
2 3/82.3750SM-AC-23750-1SM-PP-02SM-AC-23750-2SM-PP-04
HSS (M2AL) ANNULAR CUTTERS - 3/4" WELDON SHANK - METRIC SIZESOpen PDF
Cutter
Diameter
(in)
Decimal
Equivalent
Steelmax Part Number
1" Depth of CutIncluded Pilot Pin2" Depth of CutInlcuded Pilot Pin
14 mm0.5512SM-AC-14-M-1SM-PP-02SM-AC-14-M-2SM-PP-04
15 mm0.5906SM-AC-15-M-1SM-PP-02SM-AC-15-M-2SM-PP-04
16 mm0.6299SM-AC-16-M-1SM-PP-02SM-AC-16-M-2SM-PP-04
17 mm0.6693SM-AC-17-M-1SM-PP-02SM-AC-17-M-2SM-PP-04
18 mm0.7087SM-AC-18-M-1SM-PP-02SM-AC-18-M-2SM-PP-04
19 mm0.7480SM-AC-19-M-1SM-PP-02SM-AC-19-M-2SM-PP-04
20 mm0.7874SM-AC-20-M-1SM-PP-02SM-AC-20-M-2SM-PP-04
21 mm0.8268SM-AC-21-M-1SM-PP-02SM-AC-21-M-2SM-PP-04
22 mm0.8661SM-AC-22-M-1SM-PP-02SM-AC-22-M-2SM-PP-04
23 mm0.9055SM-AC-23-M-1SM-PP-02SM-AC-23-M-2SM-PP-04
24 mm0.9449SM-AC-24-M-1SM-PP-02SM-AC-24-M-2SM-PP-04
25 mm0.9843SM-AC-25-M-1SM-PP-02SM-AC-25-M-2SM-PP-04
26 mm1.0236SM-AC-26-M-1SM-PP-02SM-AC-26-M-2SM-PP-04
28 mm1.1024SM-AC-28-M-1SM-PP-02SM-AC-28-M-2SM-PP-04
29 mm1.1417SM-AC-29-M-1SM-PP-02SM-AC-29-M-2SM-PP-04
31 mm1.2205SM-AC-31-M-1SM-PP-02SM-AC-31-M-2SM-PP-04

Additional information

Depth of Cut

1", 2", 4", 6"

Diameter (Imperial)

-, 7/16" (0.4375), 1/2" (0.5000), 9/16" (0.5625), 5/8" (0.6250), 11/16" (0.6875), 3/4" (0.7500), 13/16" (0.8125), 7/8" (0.8750), 15/16" (0.9375), 1" (1.0000), 1-1/16" (1.0625), 1-1/8" (1.1250), 1-3/16" (1.1875), 1-1/4" (1.2500), 1-5/16"(1.3125), 1-3/8" (1.3750), 1-7/16" (1.4375), 1-1/2" (1.5000), 1-9/16" (1.5625), 1-5/8" (1.6250), 1-11/16" (1.6875), 1-3/4" (1.7500), 1-13/16" (1.8125), 1-7/8" (1.8750), 1-15/16" (1.9375), 2" (2.0000), 2-1/16"(2.0625), 2-1/8" (2.1250), 2-3/16" (2.1875), 2-1/4" (2.2500), 2-5/16" (2.3125), 2-3/8" (2.3750)
