Rail Runner Gen III Modular Welding & Cutting Tractor

PRECIO

The Rail Runner Gen III is a compact, modular, mechanized tractor which can be custom configured for a variety of welding, thermal cutting, and gouging applications on flat or curved plate, tube and pipe. By utilizing a magnetic guide rail and positive rack and pinion drive, the system can be utilized in all welding positions. Ergonomic remote control pendant with simple, easy to find control knobs makes process adjustment possible without the operator lifting their welding hood. A digital display with numeric representation for each motion parameter makes presetting the optimum welding or cutting procedure simple and highly repeatable.

The Rail Runner Gen III welding tractor increases arc-on time and produces consistent, high-quality welds and cuts in a fraction of the time required by manual operations. Optional accessories include tactile probe seam tracking and motorized vertical torch slide for automatic torch height control.

The Rail Runner Gen III can be used with semi-flexible rail for plate and tank work with a minimum radius of 16’ (5 m) or adapted to bent ring rail for pipe and tube applications. Standard ring rails are available for tube diameters from 8” (200 mm) up to 9.85’ (3000 mm). Rail Runner Gen III can travel on hi-flex, semi-flexible, rigid or ring tracks that can be clamped to ferrous materials with magnetic units and to non-ferrous materials by means of vacuum track system incl. vacuum pump and vacuum units.

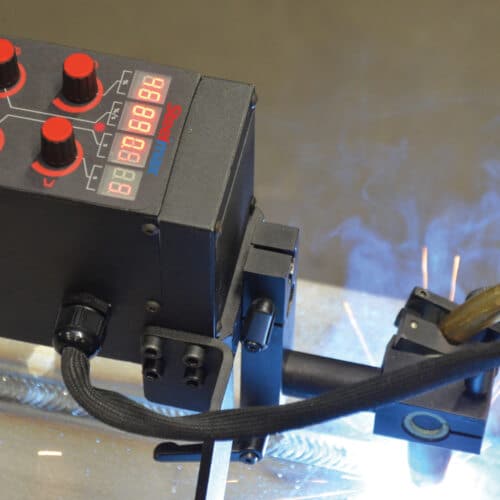

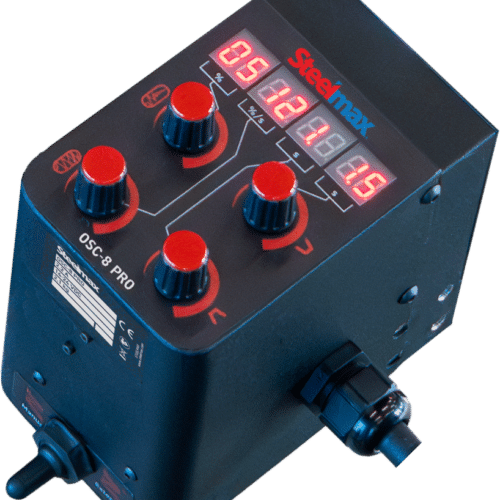

El oscilador de antorcha lineal produce trayectorias de soldadura rectas, triangulares, trapezoidales y cuadradas.

Descripción

  • Suitable for TIG welding (HF resistant)
  • Robust design with die-cast aluminum housing
  • Ergonomic remote control pendant with simple and easy to find control knobs makes adjustments possible without lifting of the operators welding hood
  • Programmable path of stitch welds
  • Suitable for a variety of circumferential and irregular surface applications down to min. radius of 100 mm (4”)
  • Active compensation of torch position vertically and horizontally also with an oscillator in use by means of modular automatic seam tracking system
  • Suitable for all welding positions on both ferrous and non-ferrous materials thanks to rack and pinion drive and various tracks equipped with magnetic or vacuum units
  • Rail Runner Gen III welding tractor produces consistent high-quality welds and cuts in a fraction of the time required by manual operations
Rail Runner Gen III Technical Specification
voltaje1 ~ 42V, 115V, 230V, 50-60 Hz
Poder60 W
Posiciones de soldaduraVertical, Horizontal, Flat
Mounting on curved
and round surfaces
Ring tracks (OD)
Hi-flex tracks (OD)
Hi-flex tracks (ID)
Semi-flex tracks
8 in (200mm) -10 ft (3m)
Minimum 5 ft (1.5 m)
Minimum 11 ft (3.4 m)
Minimum 32 ft (10m)
Diámetro de la antorcha0.63–0.87 in (16-22 mm) to 1.38 in
(35mm)
Espesor mínimo de la pieza de trabajo0.2 in (5 mm)
Fuerza de tracción horizontal90 lbs
Fuerza de tracción vertical90 lbs
Velocidad horizontal0-98 in/min (0-250 cm/min)
Velocidad vertical0-98 in/min (0-250 cm/min)
Tipo de oscilaciónlineal
Camino de oscilacióntriangle, straight line, trapezoid, square
Carrera del brazo del oscilador0-3.9 in (0-100 mm)
Ancho de oscilación0.04-4.5 in (0.1-11.8 cm)
Velocidad de oscilación5-78 in/min (10-200 cm/min)
Retardo de oscilación en el centro y en los extremos0–5 s
Fuerza de tracción máxima del oscilador22 lbs
Peso29 lbs (13 kg)
