Hydraulic MIG Wire Feeder Boom

Steelmax® Hydraulic MIG Wire Feeder Boom (HFB360) was created as a useful part of a welder’s workplace, that is able to carry both power source and wire feeder. The design and construction of the HFB360 makes the welders job more ergonomic and productive. Lifting, lowering and rotation functions of the Hydraulic MIG Wire Feeder boom extend the workstation area and also makes it easy to move the unit across the shop floor.

  • Rotates 360° around the vertical axis
  • Adjustable height of the boom from 51” (1300 mm) to 135” (3430 mm)
  • Part Number: SM-HFB-360

Descripción

  • Expands workspace envelope
  • Improves freedom of movement and welder efficiency
  • Eliminates wire feeding problems caused by long cable feed assemblies
  • Promotes a safer, less cluttered work environment
  • Robust design and construction
  • Easy installation
  • Supports wire feeders up to 110 lbs (50 kg) including wire and spool

Especificaciones técnicas

Hydraulic MIG Wire Feeder BoomHFB360

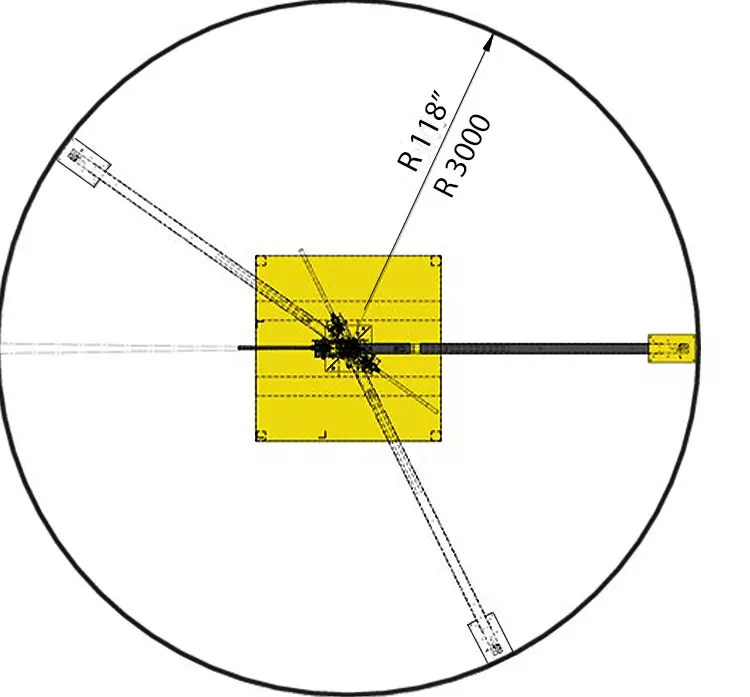

Reach118 in ( 3000 mm)
Rotation Angle0-360°
Maximum Load110 lbs (50 kg)
Dimensiones (L x An x Al)148" x 63" x 94" (min) / 135" (max )
3750 mm x 1600 mm x 2390 mm (min) / 3430 mm (max)
Lifting Height51-135 in (1300-3430 mm)
Número de piezaSM-HFB-360
Peso733 lbs (330 kg)
