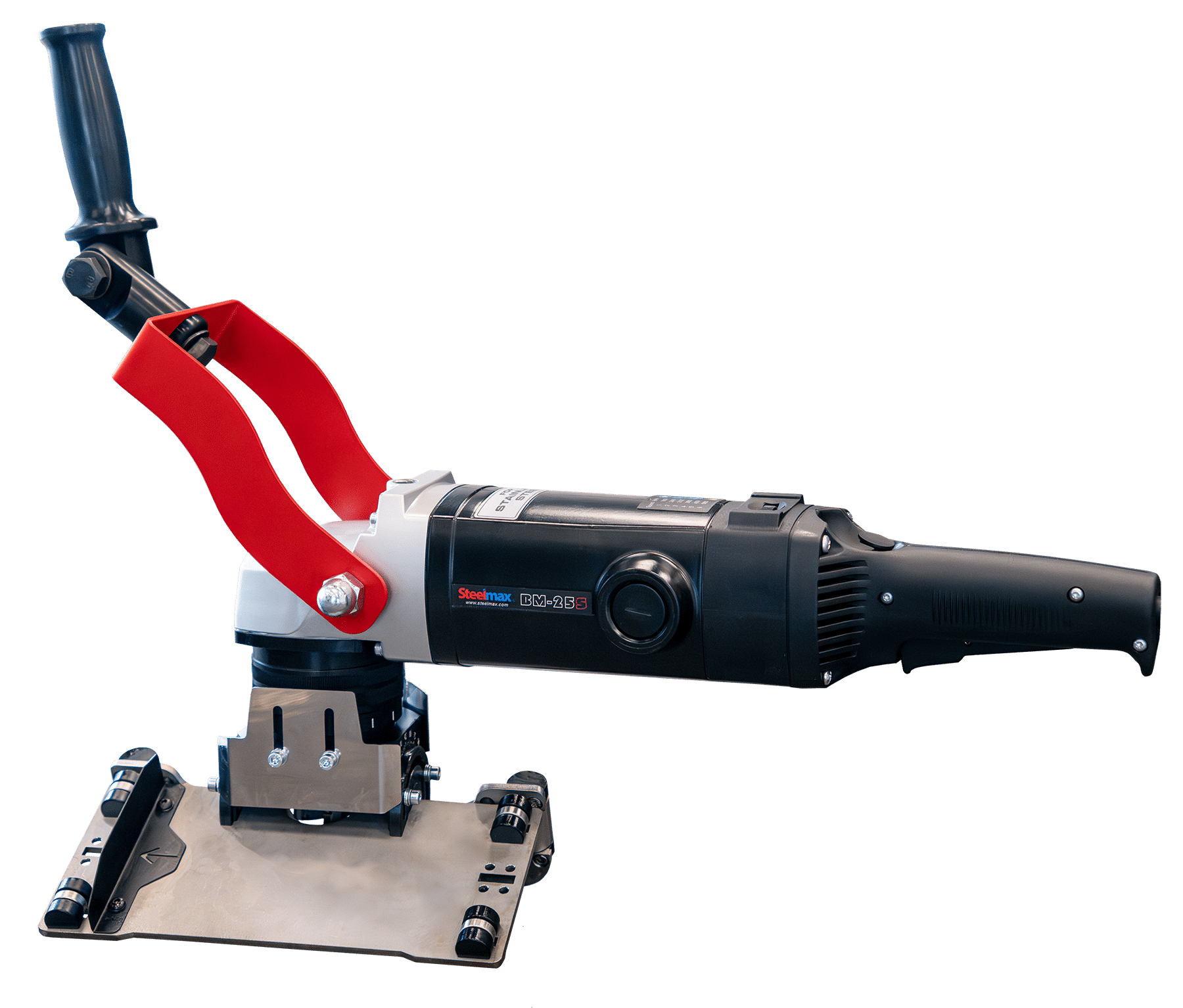

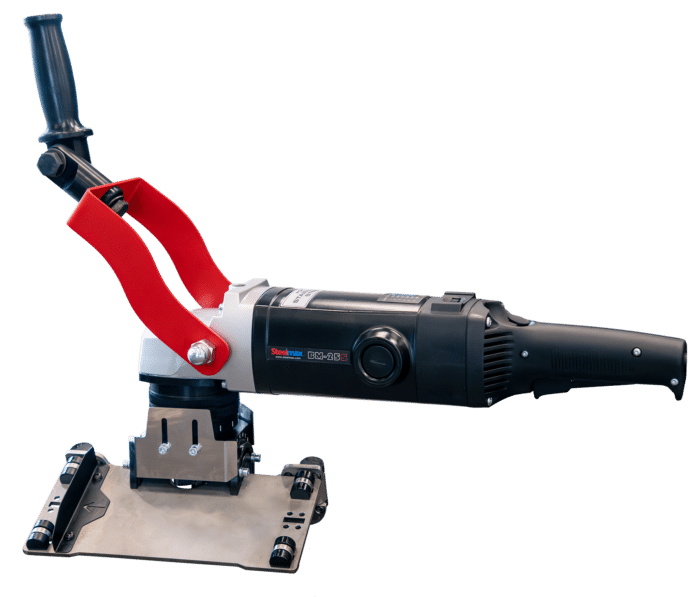

BM-25S Plate Beveling Machine for Stainless Steel

PRECIO

PORTABLE HEAVY DUTY BEVELING MACHINE FOR STAINLESS STEEL

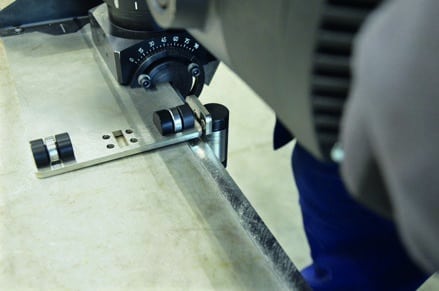

los Steelmax BM-25S is a reliable, heavy-duty portable beveling machine designed specifically for stainless steel applications. Built for performance and precision, it features a powerful motor and a face milling beveling head that ensures smooth operation and exceptional results—job after job.

With the ability to bevel straight edges up to 1 inch wide (25 mm), the BM-25S is ideal for prepping material for welding or finishing. The variable spindle speed allows operators to fine-tune cutting conditions based on the material and application, increasing both efficiency and tool life.

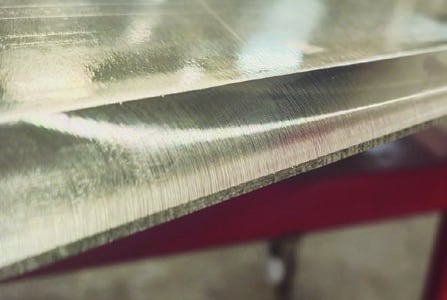

los continuously adjustable bevel angle, variable from 0° to 90°, gives full control over the cutting geometry, while the depth of cut can be precisely set to match your needs. Whether you’re doing light edge prep or more aggressive material removal, the BM-25S delivers clean, accurate bevels every time.

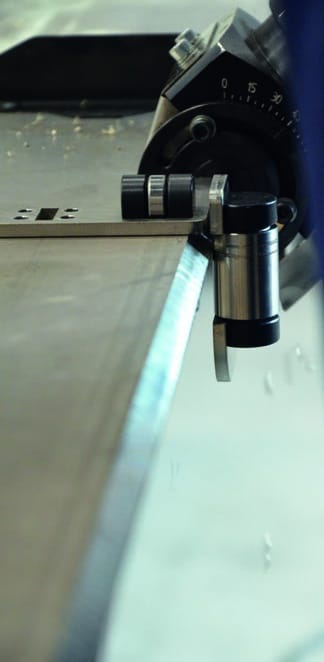

Designed with operator ease in mind, the unit includes a roller guide system that makes it smooth and easy to maneuver. All guide components are made of stainless steel, helping to prevent contamination and ensuring long-term durability.

To protect your investment and keep operations safe, the BM-25S is equipped with a modern electronic motor overload module that safeguards the operator, the machine, and tooling.

When stainless steel is used, the BM-25S offers the right blend of strength, control, and reliability.



Descripción

  • Ajuste continuo del ancho del bisel de 0 a 90 grados
  • El juego de guías con rodillos se puede girar 360 grados.
  • Las placas guía de precisión garantizan un rendimiento de corte preciso y repetible
  • Protección de sobrecarga del motor
  • Velocidad de husillo variable
  • Potente motor de 2200 W
  • Bisel máximo de 1”(25) mm
  • Mango y agarre ajustables para un funcionamiento ergonómico.
BM25 Especificaciones técnicas
Fuente de alimentación110-120V / 50-60Hz o 220-240V / 50-60Hz
Motor2200W
Velocidad del motor (sin carga)1800-5850 rpm
Ancho máximo de bisel1" (25 mm)
Ángulos de bisel en función del cabezal de fresado0 grados.
90 Grados (opción)
Espesor mínimo del lugar de trabajo0,08" (2 mm)
Temperatura ambiente requerida32-104° (0-40°C)
Números de piezaSM-BM 25 (120 V/ 50-60 Hz) SM-BM 25-230 (230 V/ 50-60 Hz)
Peso (sin cabezal de fresado)12,5 kg (28 lbs)

Información adicional

Peso28 lbs
Dimensiones31.6 × 13.5 × 6.7 en
Accesorios, consumibles y repuestos BM7
SM-GLW-0540-08-00-00-0Cabezal de fresado biselado 45 °
SM-GLW-0540-09-00-00-0Cabezal de fresado biselado 30 °
SM-PLY-000391Inserto de biselado para acero (se requieren 4 piezas)
SM-PLY-000423Inserto de biselado para aluminio (se requieren 4 piezas)
SM-PLY-000360Inserto de radio R2
SM-PLY-000161Inserto de radio R5
SM-PLY-000160Inserto de radio R4
SM-PLY-000159Inserto de radio R3
SM-SRB-000289Tornillo de inserción biselado
SM-RLK-0540-08-02-00-0Rodillo de guía
SM-SMR-000005Grasa antiagarrotamiento para tornillos de inserción
SM-NKL-0540-15-00-00-0Cubierta antirrayas para placa guía
SM-SCZ-000009Escobilla de carbón para motores de 115V / 230V
SM-UST-0509-16-00-00-0Herramienta de configuración para fresado radial
