Fully automated welding processes are cool and plain fun to watch. Seemingly unattended robots performing their pre-programmed dance can be mesmerizing, but many processes are not suited to being fully automated. Robots can be great for high-volume, low variability production, but when the product mix is lower-volume with high product variability, robots are rarely the answer. In these instances, simple mechanized welding processes have revolutionized the welding industry and have provided numerous benefits over traditional welding methods.

Mechanized Welding with Lil Runner Welding Carriage
La mecanización de la soldadura, por lo general, implica el uso de un carro de soldadura o tractor to hold a welding torch in a constant position relative to the weld seam and provide precise motion control of the torch along the weld seam. Carriages are generally of two types: (i) los que utilizan adhesión magnética y brazos guía para seguir el cordón de soldadura o ii) máquinas sobre raíles que se desplazan a lo largo de una guía dentada fijada a la pieza de trabajo (mediante imanes o sistemas de vacío) para permitir el control de la dirección y la regulación de la velocidad. Sistemas de carros de soldadura can be set up quickly without complicated programming or precise geometries. This is why they excel in situations where the product mix is low volume or changes frequently.

Estas son algunas de las principales ventajas de utilizar procesos de soldadura mecanizados:

  • Mejora de la calidad y consistencia de la soldadura: Los procesos de soldadura mecanizada son muy precisos y uniformes, lo que da lugar a soldaduras de mayor calidad con menos defectos. Esto se traduce en un producto final más resistente y duradero y reduce la necesidad de costosas inspecciones y reparaciones posteriores a la soldadura.
  • Productividad incrementada: Los procesos de soldadura mecanizada pueden producir un gran número de soldaduras de alta calidad en menos tiempo en comparación con los métodos de soldadura tradicionales. Este aumento de la productividad ayuda a las empresas a cumplir los plazos y reduce los costes de producción.
  • Mayor seguridad: Los procesos de soldadura mecanizados permiten al operario controlar el proceso de soldadura en
    Rail Runner Welding Carriage Vertical
    distancia del arco de soldadura, lo que reduce el riesgo de lesiones para el soldador. Además, dado que el sistema de soldadura se desplaza hacia la pieza en lugar de al revés, se reducen el tiempo y los gastos de manipulación del material, al tiempo que se mejora la seguridad en el taller.
  • Flexibilidad: Los procesos de soldadura mecanizada se configuran fácilmente y pueden reconfigurarse con rapidez para su aplicación a una gran variedad de geometrías de soldaduras y piezas. Los sistemas también suelen ligero y compacto y se puede desplazar fácilmente hasta la pieza que se va a soldar, en el taller o sobre el terreno.
  • Reducción de residuos: Los procesos de soldadura mecanizados minimizan la cantidad de residuos generados durante el proceso de soldadura, tanto en gas de protección como en metal de aportación. Esto reduce los costes de producción y fomenta la sostenibilidad.

Soldadura mecanizada ofrecen numerosas ventajas con respecto a los métodos de soldadura tradicionales, como la mejora de la calidad de la soldadura, el aumento de la productividad, la mejora de la seguridad, el aumento de la eficacia, la mejora de la uniformidad y la reducción de los residuos. Estas ventajas hacen que los procesos de soldadura mecanizada sean una opción atractiva para las empresas que buscan mejorar sus operaciones de soldadura.

What Is Mechanized Welding?

Mechanized welding involves the use of a welding carriage, tractor or automatic system to control torch position and travel speed along a weld seam providing consistent repeatable welds in long runs or high production volumes that manual welding is just unable to match. It fills the space between fully manual welding and welding automation, making it a good fit for a lot of fabrication environments.

How a Mechanized Welding Process Works

At its core, a mechanized welding process uses a welding carriage or tractor to hold the welding torch at a fixed position while providing precise, controlled motion along the joint. The operator sets the travel speed, torch angle, and welding parameters at the welding station, then initiates the weld.

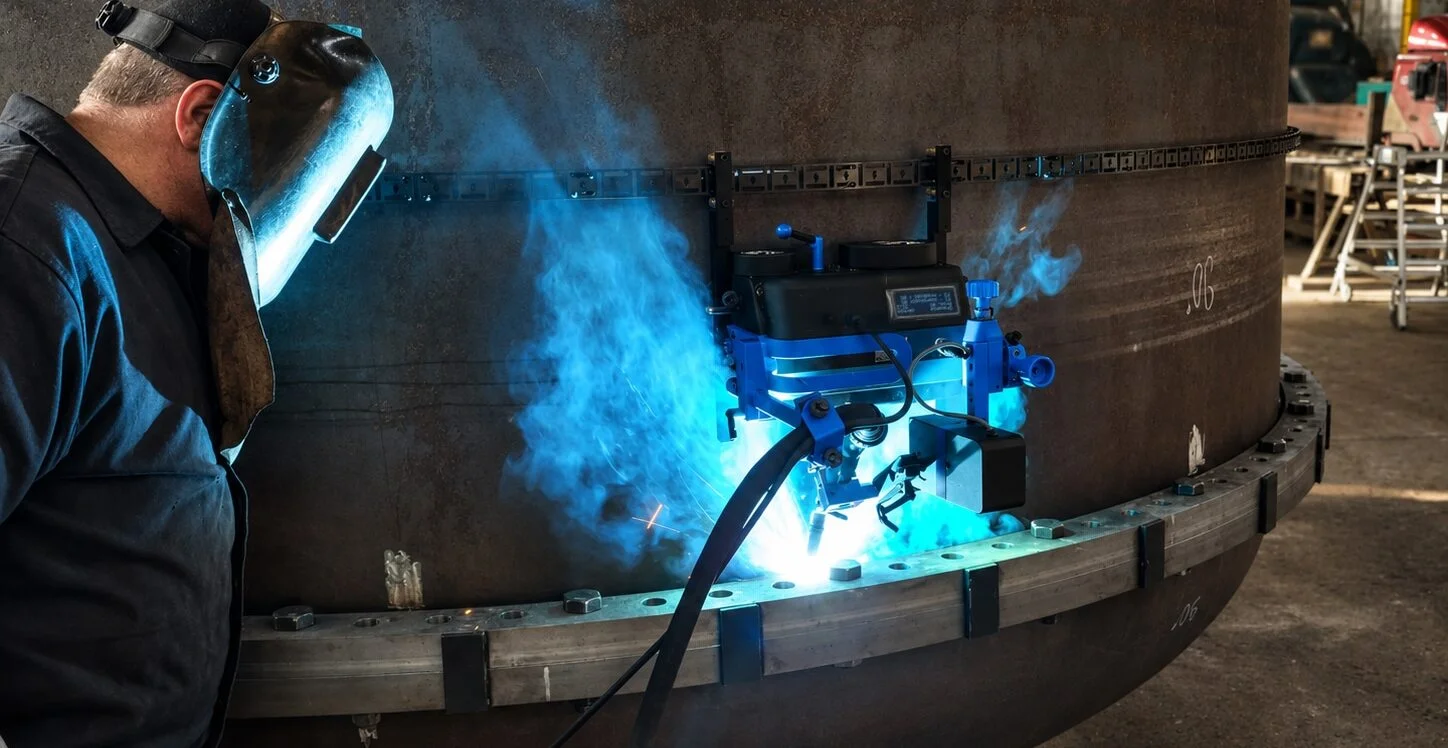

Rail-mounted systems travel along a geared track fixed to the workpiece, providing precise directional control on longer straight seams. Trackless magnetic carriages follow the weld seam using guide arms and magnetic adhesion, offering fast setup and flexibility across varied part geometries.

Types of Mechanized Welding Processes

Steelmax also provides mechanized welding solutions for the most common carriage-based welding and cutting applications. Rail-mounted welding carriages move on a geared track attached to the workpiece by means of magnets or vacuum systems offering excellent straight-line control for long seam welding on plate and structural steel and in pressure vessels. Trackless carriages employ magnets for adhesion and guide arms to track the weld seam, so no tracks need to be set up in advance, and they are useful for curved surfaces as well as applications that require rapid repositioning.

Depending on the application, welding and cutting carriages can be adapted for MIG, TIG, SAW, and thermal cutting processes. A welding oscillator takes capability even farther, allowing weave patterns and wider bead profiles for groove filling and overlay welding.

Best Practices for Implementing Mechanized Welding

Maximizing a mechanized welding process begins with the initial setup and operator training. Before you attach the carriage system, make sure your welding station is clean and stable and prepared. Depending on your welding process specification, establish travel speed and torch settings before running a job. Visually check rail tracks, guide arms, and drive systems for signs of wear.

Preguntas frecuentes

What are the advantages of mechanized welding?

Mechanized welding delivers improved weld quality, greater consistency, increased productivity, and reduced operator fatigue compared to manual welding. This also minimizes filler metal and shielding gas waste across production runs.

Can mechanized welding be used for all metals?

Yes, mechanized welding is compatible with most weldable metals including mild steel, stainless steel, aluminum, and more, provided the correct welding process, parameters, and consumables are selected for the base material.

What industries use mechanized welding?

Mechanized welding is widely used in shipbuilding, structural steel fabrication, pressure vessel manufacturing, pipeline construction, heavy equipment manufacturing, and offshore oil and gas.

Is mechanized welding more cost-effective than manual welding?

In most production environments, yes. Mechanized welding reduces labor costs per weld, minimizes rework from inconsistent manual technique, lowers consumable waste, and increases throughput.

Can mechanized welding improve safety?

Absolutely. Mechanized welding allows operators to control the process from a safe distance from the welding arc, significantly reducing exposure to arc flash, heat, and welding fumes.
