Machine à biseauter les tuyaux PB10 (pneumatique ou électrique)

PRIX

BROCHURE MANUEL

VIDÉO

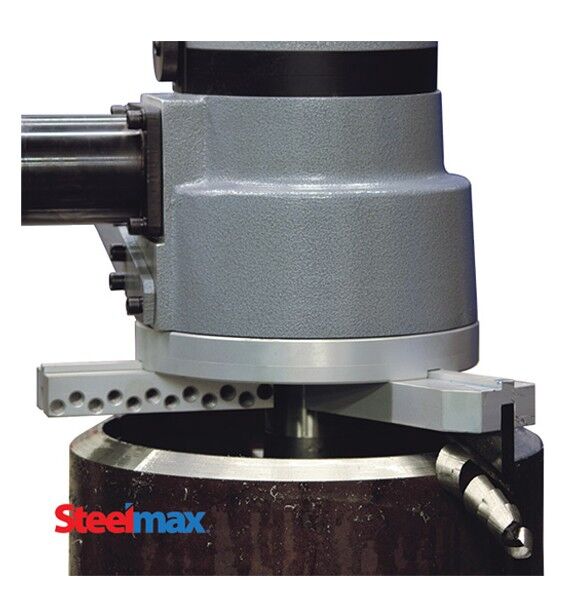

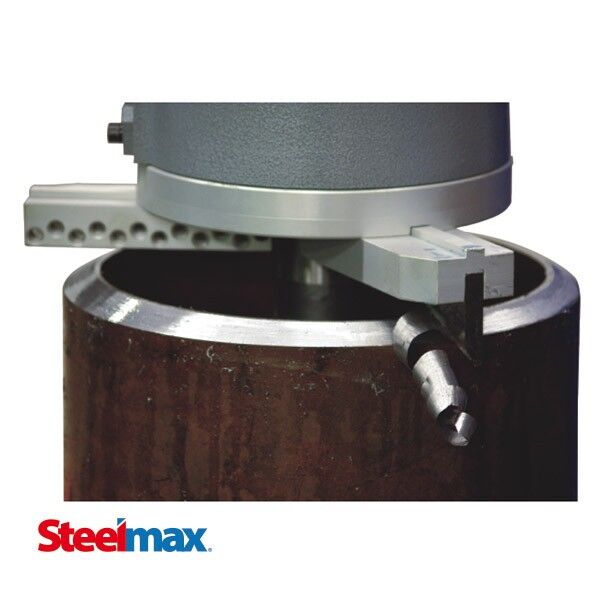

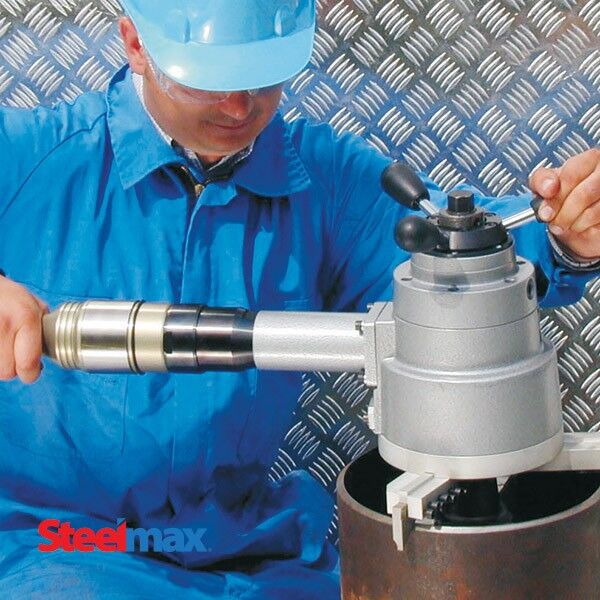

The Steelmax PB10 pipe beveling machine is designed for portable use in pipe machining operations and can be used efficiently by a single operator. The PB10 is a heavy-duty ID mounted pipe beveler utilizing self-centering expandable mandrels to provide quick and proper alignment to a pipe or a tube prior to machining operations.

The PB10 is able to bevel, face and counter-bore in a single operation, making all these weld prep operations quick and simple.

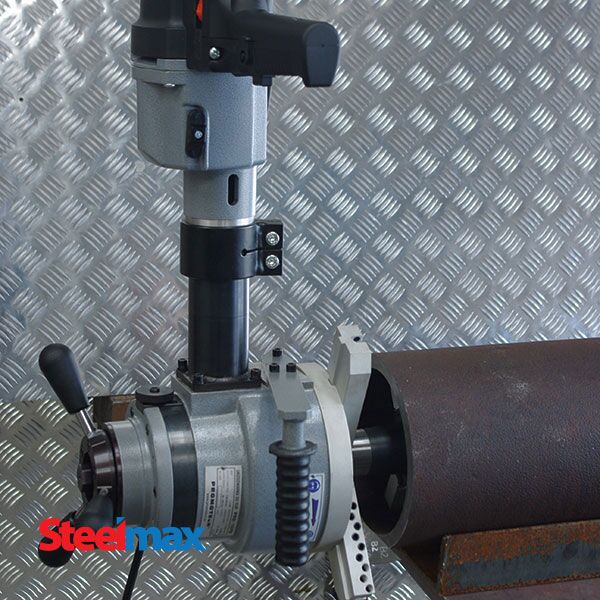

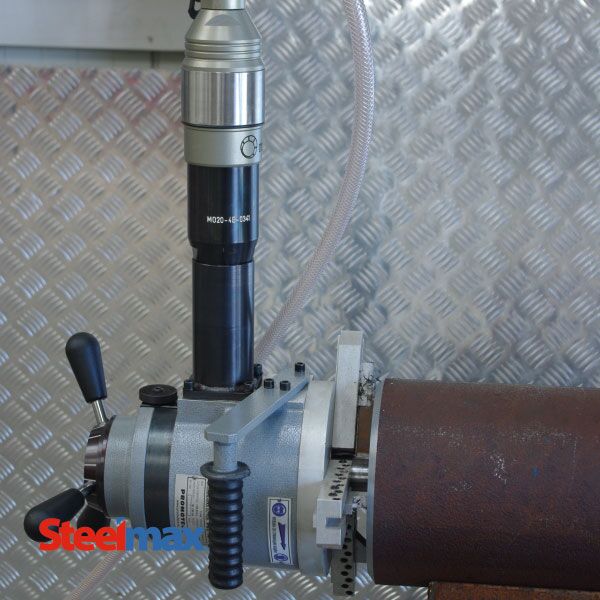

Depending on preferences and site conditions, the PB10 can be operated with a powerful pneumatic motor or a high-torque electric motor.

CARACTÉRISTIQUES

Biseautage, surfaçage et contre-perçage simultanés
Mèches standard et sur mesure disponibles
Disponible en version électrique et pneumatique
Mèches J-Bevel disponibles pour une grande efficacité de soudage sur les tubes à parois plus épaisses

UGS : SM-PB10-E; SM-PB10-P Catégories: Biseauteuses de tuyaux, Biseautage de plaques et de tuyaux

Description

Biseautage, surfaçage et contre-perçage simultanés
Mèches standard et sur mesure disponibles
Disponible en version électrique et pneumatique
Mèches J-Bevel disponibles pour une grande efficacité de soudage sur les tubes à parois plus épaisses

D1 Compact Portable Magnetic Drill Technical Specifications

Motor Speeds (Under Load):	350 rpm
Puissance du moteur	920 W 1.2 HP
Tension	115V/60Hz or 230V/50Hz
Max Hole Size-Annular Cutter	1-7/16 " (36 mm)
Max/Twist Drilling Capacity	1/2" (12 mm)
Max Depth of Cut	2" (51 mm)
Stroke	2-3/4" (70 mm)
Magnetic clamping force (surface with the thickness of 1" (25 mm) and roughness Ra=1.25	2,021.64 (lbf) 917 kgf (9000 N)
Magnet base dimensions	3-1/8 x 6-5/16 x 1-7/16 [“] 80 × 161 × 36.5(mm)
Min. Workplace Thickness	1/4" (6 mm)
Spindle	3/4" (19 mm) Weldon
Tool Holder	3/4" (19 mm) Weldon
Poids	22 lbs (10 kg)

Information complémentaire

Poids	166 livres
Dimensions	40 × 18 × 19 pouce

Additional Equipment:
SM-PRK-0447-00-00-00-2	Flange facing attachment with cutting capacities 3-9/16” to 20" (90 - 508 mm), delivered in a metal box
SM-PRK-0463-00-00-00-1	Out of round attachment set includes large mandrel for pipe ID Ø 5" to 11-5/8" (126 - 296 mm), delivered in a metal box
SM-ZSP-0200-05-00-00-2	Self-centering expandable Mandrel for pipe I.D. Ø 1-1/2 – 3-3/8” (38 – 86 mm)
SM-ZST-0200-13-00-00-2	Extension set for ID Ø up to 14” (355 mm) includes 3 steel tool holders and jaws 7-12, delivered in metal box
SM-ZST-0200-12-00-00-0 SM-ZST-0200-12-00-00-1 SM-ZSP-0200-03-00-00-0	Electric motor set 230V Electric motor set 115V US plug Air Motor Assembly
