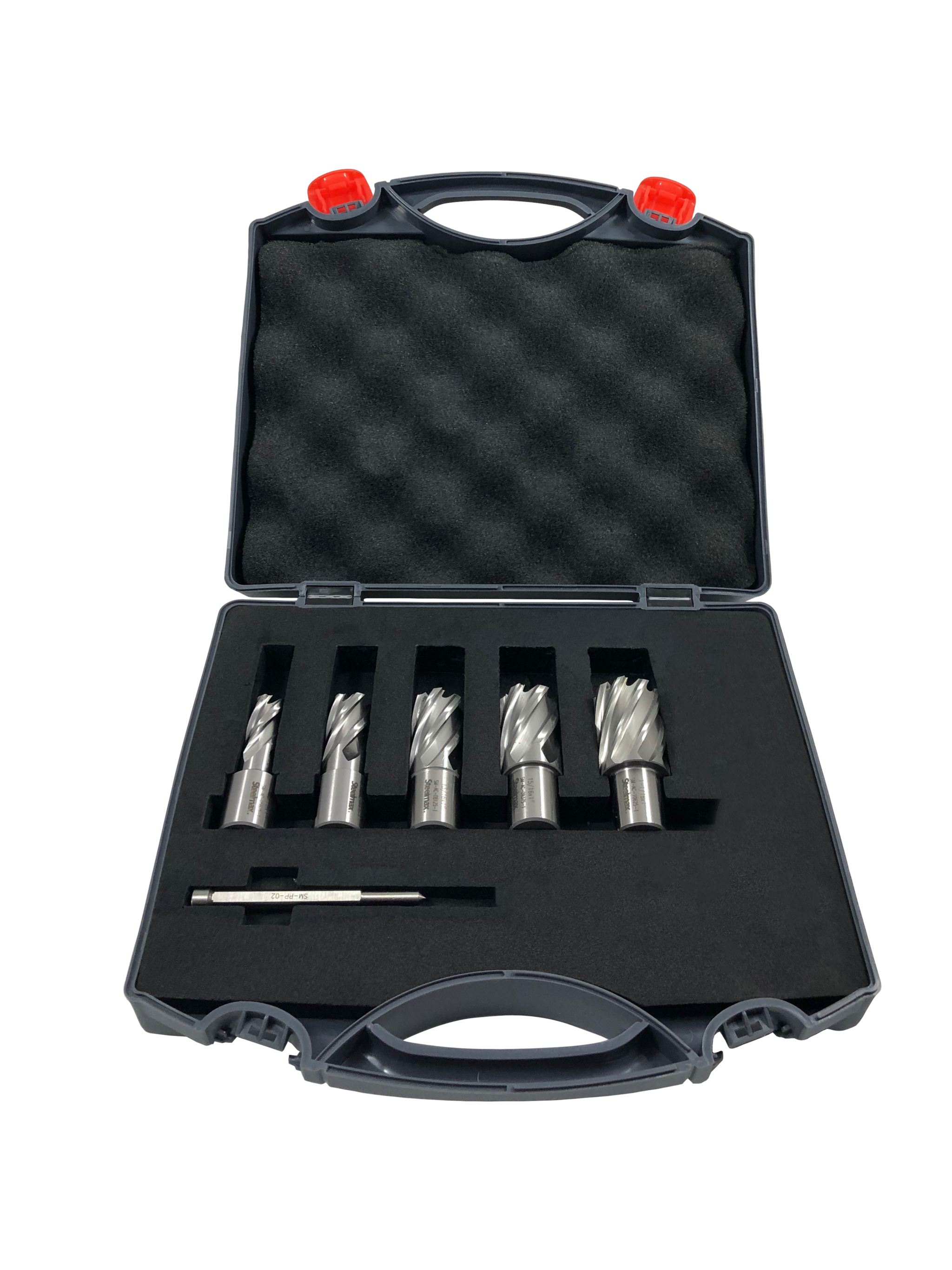

This Steelmax offering is a 13 piece or 7 piece premium annular cutter set available in 1″ & 2″ depth of cut. These annular cutter sets give you a complete system to handle the most popular hole-making jobs. Utilizing the carrying case also helps maintain the life of the annular cutters. Steelmax HSS (High Speed Steel) cutters utilize an M2Al (aluminum additive) formulation which increases cutter life due to better heat propagation characteristics and a less brittle character compared to other M2 formulations, such as those using a cobalt additive.
D1 Compact Portable Magnetic Drill Technical Specifications
| Motor Speeds (Under Load): | 350 rpm |
| Puissance du moteur | 920 W 1.2 HP |
| Tension | 115V/60Hz or 230V/50Hz |
| Max Hole Size-Annular Cutter | 1-7/16 " (36 mm) |
| Max/Twist Drilling Capacity | 1/2" (12 mm) |
| Max Depth of Cut | 2" (51 mm) |
| Stroke | 2-3/4" (70 mm) |
| Magnetic clamping force (surface with the thickness of 1" (25 mm) and roughness Ra=1.25 | 2,021.64 (lbf) 917 kgf (9000 N) |
| Magnet base dimensions | 3-1/8 x 6-5/16 x 1-7/16 [“] 80 × 161 × 36.5(mm) |
| Min. Workplace Thickness | 1/4" (6 mm) |
| Spindle | 3/4" (19 mm) Weldon |
| Tool Holder | 3/4" (19 mm) Weldon |
| Poids | 22 lbs (10 kg) |
Information complémentaire
| Poids | N/A |
|---|---|
| Dimensions | N/A |
| Profondeur de coupe | 1", 2" |
| Taille de l'ensemble | 7, 13 |
